Two engine cooling fans (without air conditioning)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Two engine cooling fans (without air conditioning)
‹ Prev Location of components on vehicle - Engine cooling fan without air conditioning without A.B.S.Next › Location of components on vehicle - Two engine cooling fans without air conditioning
55 Electrical equipmentTwo engine cooling fans (without air conditioning)

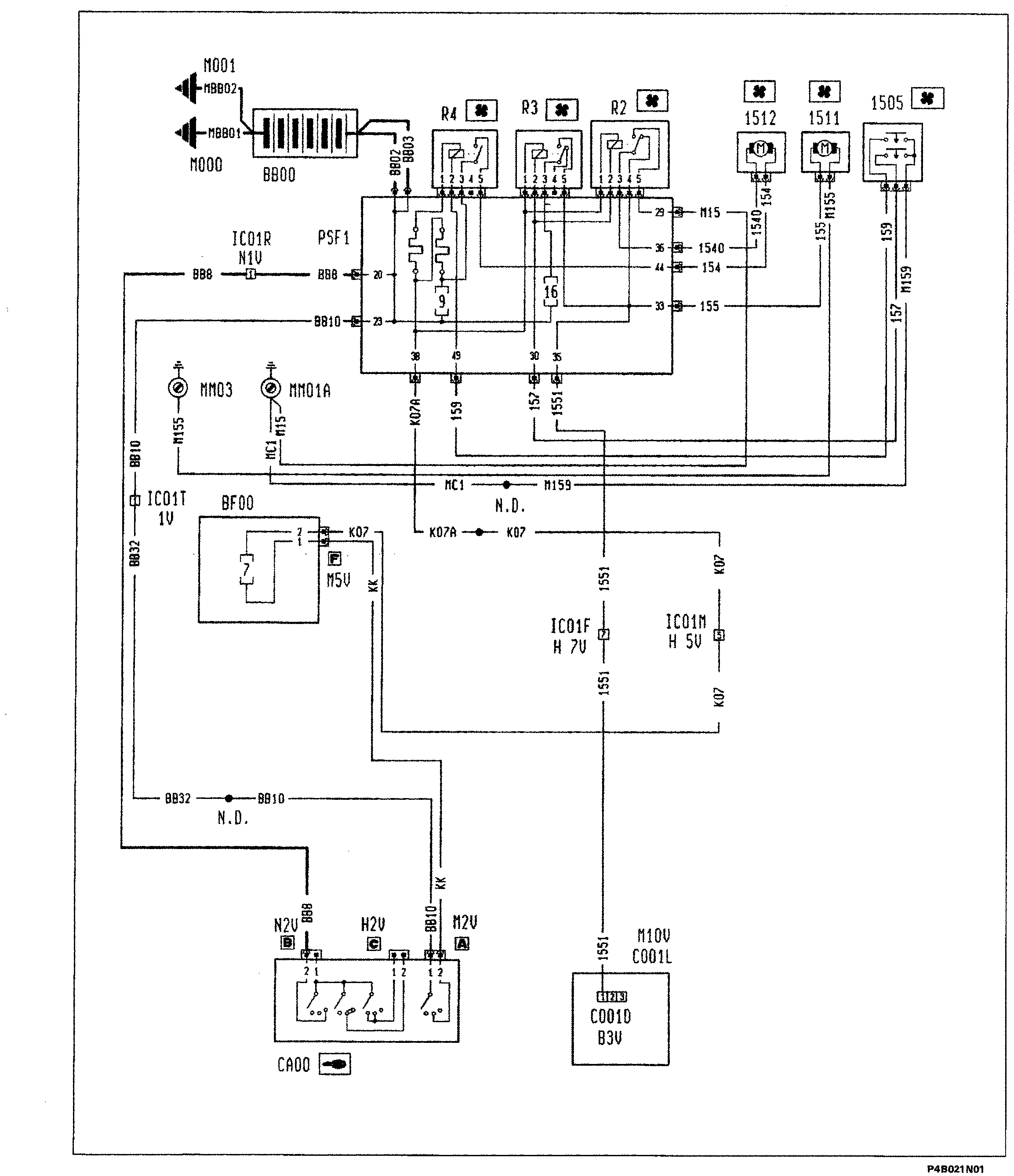

Two engine cooling fans (without air conditioning) – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Two engine cooling fans (without air conditioning)
Two engine cooling fans - (See key at end of wiring diagrams)
‹ Prev Location of components on vehicle - Engine cooling fan without air conditioning without A.B.S.Next › Location of components on vehicle - Two engine cooling fans without air conditioning
