Location of components - Air conditioning

Location of components - Air conditioning

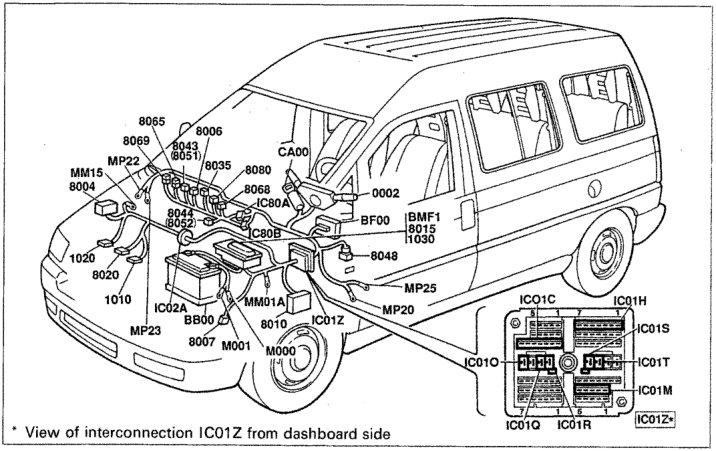

* View of interconnection IC01Z from dashboard side

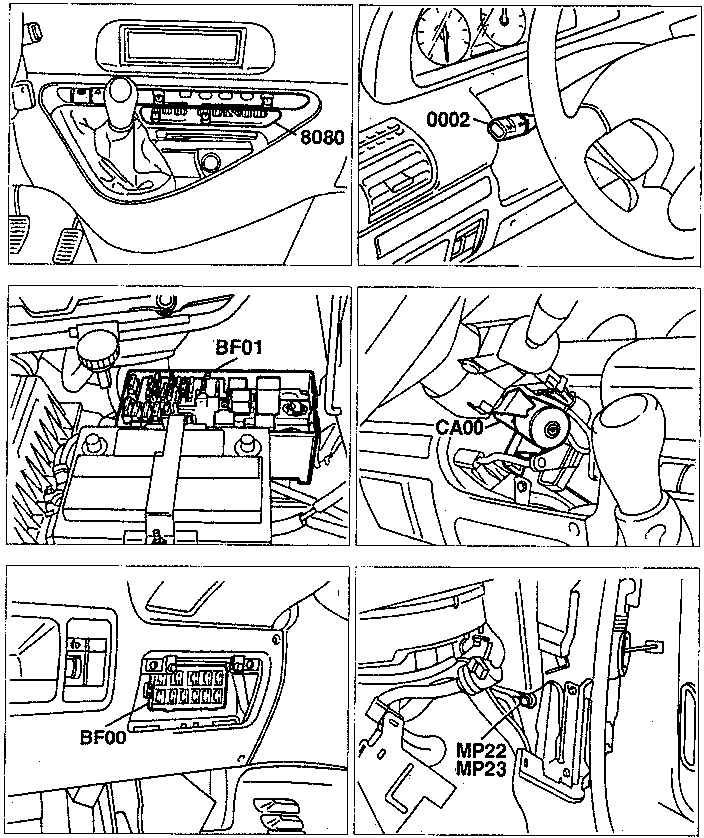

Components key

BB00 Battery

BF00 Junction unit (vehicle interior)

BMF1 Maxi fuse control unit

CA00 Ignition switch

PSF1 Junction unit (engine compartment)

0002 Steering column switch unit

1010 Starter motor

1020 Alternator

1030 Ignition discharge relay

8004 Engine cooling system cut out control unit

8006 Evaporation temperature sensor

8007 Three stage pressure switch

8010 Engine cooling system electronic control unit

8015 Compressor disengagement switch

8020 Compressor

8035 Passenger comp. electronic temp. thermostat

8043 Right heater fan control module

8044 Left heater fan control module

8048 Heating/air conditioning relay

8051 Right heater fan

8052 Left heater fan

8065 Mixture air motor

8068 Left air intake flap motor

8069 Right air intake flap motor

8080 Climate control system control unit

Connections key

IC01C Connection btwn main & dashboard cables

IC01H Connection btwn main & dashboard cables

IC01M Connection btwn main & dashboard cables

IC01O Connection btwn main & dashboard cables

IC01Q Connection btwn main & dashboard cables

IC01R Connection btwn main & dashboard cables

IC01S Connection btwn main & dashboard cables

IC01T Connection btwn main & dashboard cables

IC01Z Interconnection between main cables and dashboard cables

IC02A Connection btwn main & engine cables

IC80A Connection between dashboard cables and air conditioning/heater cables

IC80B Connection between dashboard cables and air conditioning/heater cables

Earth key

MM01A Left front earth

MM15 Earth on engine

MP20 Earth on dashboard, left

MP22 Earth on dashboard, right

MP23 Earth on dashboard, right

MP25 Earth on dashboard, left

M000 Battery earth

M001 Battery earth

N.D. Ultrasound welding taped in cable loom
