Strainer - oil pick-up Pump - oil (page 2 of 2)

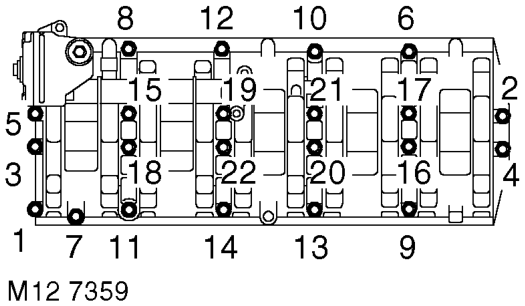

6. Using sequence shown, remove and discard 22 bolts securing oil pump and stiffener assembly.

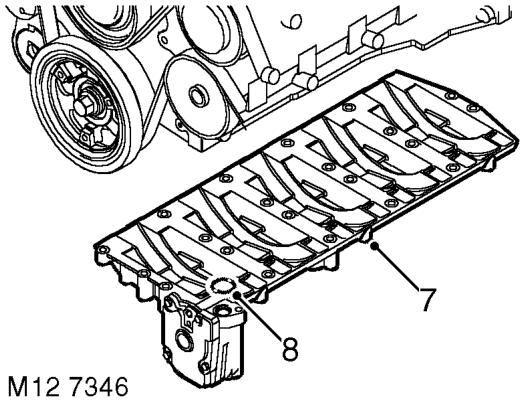

7. Remove oil pump and stiffener assembly from cylinder block.
8. Remove and discard 'O' ring.

Refit

1. Clean mating faces of oil pump and stiffener assembly, main bearing caps and cylinder block.
2. Fit new 'O' ring to oil pump housing.
3. Position oil pump and stiffener assembly onto cylinder block ensuring 2 dowels are correctly located.

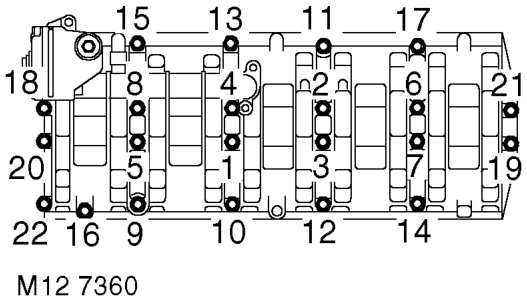

4. Fit new bolts and using sequence shown, tighten to 13 Nm (10 lbf.ft) .
5. Clean threads of oil pick-up strainer Torx screws.
6. Fit new 'O' ring to oil pick-up strainer.
7. Fit oil pick-up strainer, apply Loctite 242 to threads of Torx screws, fit screws and tighten to 10 Nm (7 lbf.ft).

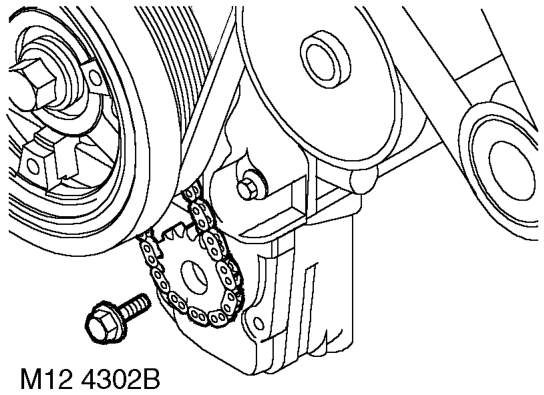

8. Position oil pump drive sprocket and chain onto oil pump ensuring that the 'D' shape on the drive sprocket is located on the oil pump shaft.

9. Clean oil pump drive sprocket retaining bolt and apply Loctite 242 to bolt threads.
10. Fit oil pump drive sprocket and tighten bolt to 25 Nm (18 lbf.ft).
11. Fit new sump gasket. ENGINE - Td5, REPAIRS, Gasket - sump.
