Cooler - engine oil (page 2 of 5)

11. Push against coupling release rings and disconnect both hoses from oil cooler. Gasket - timing gear cover

CAUTION: Always fit plugs to open connections to prevent contamination. $% 12.65.04

Remove

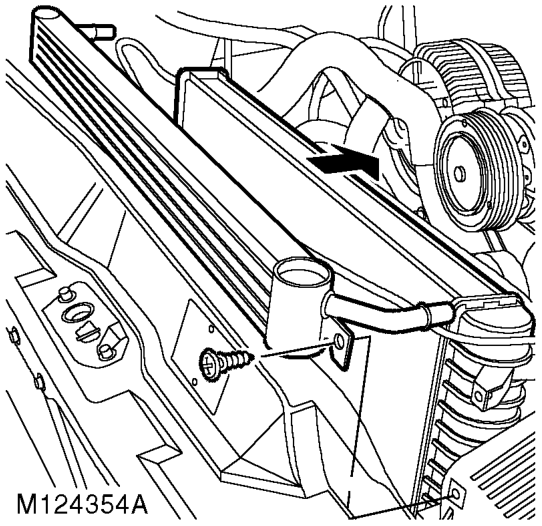

12. Remove screw securing oil cooler to radiator.
13. Release cooler from its location on radiator.
14. Release radiator lower mountings from location in chassis and carefully move radiator towards engine sufficiently only to release engine oil cooler from radiator.
15. Remove engine oil cooler.

Refit

1. Fit engine oil cooler to radiator, engage in location and secure with screw.
2. Fit radiator to location in chassis.
3. Ensure connections are clean, then secure hoses to oil cooler.
4. Fit extension brackets to radiator and secure with bolts.
5. Fit brackets with rubber mounts to extension brackets and secure to air conditioning condenser with screws.
6. Fit radiator upper mounting brackets and secure to body with bolts.
7. Fit LH horn and secure with nut.
8. Fit LH and RH air deflectors to front panel and secure with scrivets.
9. Fit front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - up to 03MY..
10. Fit cooling fan cowl and secure with fixings.
11. Fit battery cover and secure with fixings.
12. Top up engine oil.
1. Remove oil pick-up strainer. ENGINE - V8, REPAIRS, Strainer - oil pick-up.
2. Remove timing gear cover oil seal. ENGINE - V8, REPAIRS, Seal - cover - timing gears.
3. Remove engine oil filter. ENGINE - V8, REPAIRS, Filter - oil.

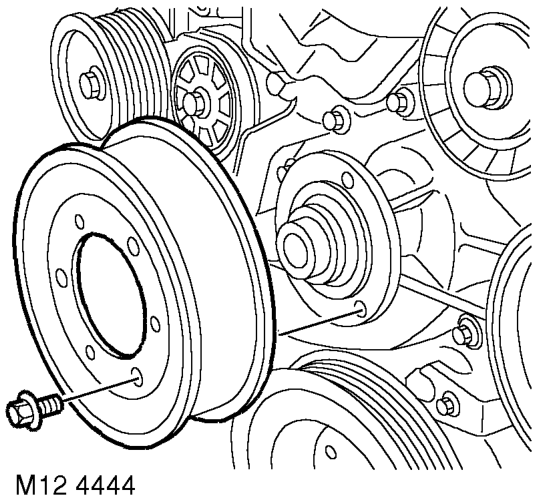

4. Remove and discard 3 bolts securing coolant pump pulley and remove pulley.

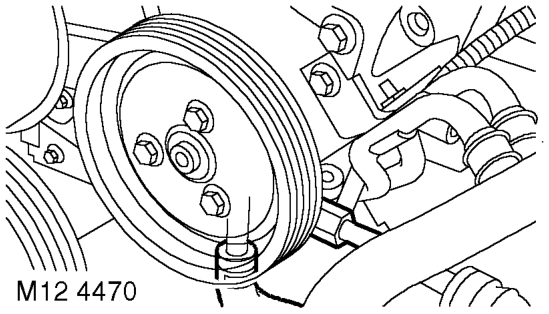

5. Remove 3 bolts securing PAS pump pulley and remove pulley.
6. Drain cooling system. COOLING SYSTEM - V8, ADJUSTMENTS, Drain and refill.
