Land Rover Discovery II (UK)10 · Engine - V8
10 · Engine

Ring gear - starter (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Engine - V8Ring gear - starter · page 2 of 2
  1. Ensure ring gear is correctly seated around the complete circumference of flywheel and allow Filter - oil to cool.
  2. Fit flywheel.

$% 12.60.04 ENGINE - V8, REPAIRS, Flywheel.

Remove

Refit

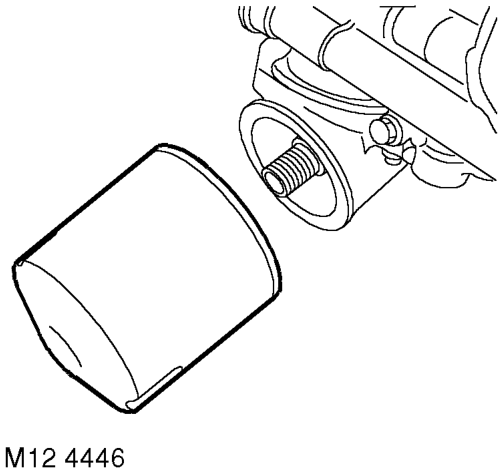

  1. Clean area around filter head and place a container beneath engine.
Clean area around filter head and place a container beneath engine.
  1. Using a strap wrench, unscrew and discard filter.
  2. Clean mating face of filter head.
  3. Lubricate sealing ring of new filter with clean engine oil.
  4. Fit filter and tighten by hand until it seats then tighten a further half turn.
  5. Start and run engine to check for leaks.
  6. Stop engine, wait a few minutes, then check oil level.
  7. Top up engine oil.
