Front suspensionBushes - Panhard rod

REPAIRS

Bushes - Panhard rod

$% 60.10.07

Remove

  1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Bushes - panhard rod – Raise front of vehicle.

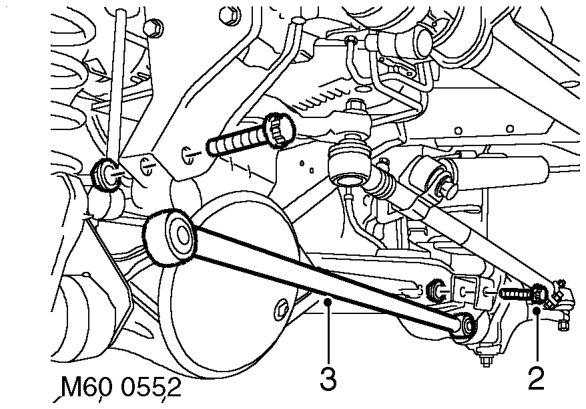

  1. Remove 2 nuts and bolts securing Panhard rod to axle and chassis.
  2. Remove Panhard rod from vehicle.
Bushes - panhard rod – Remove Panhard rod from vehicle.

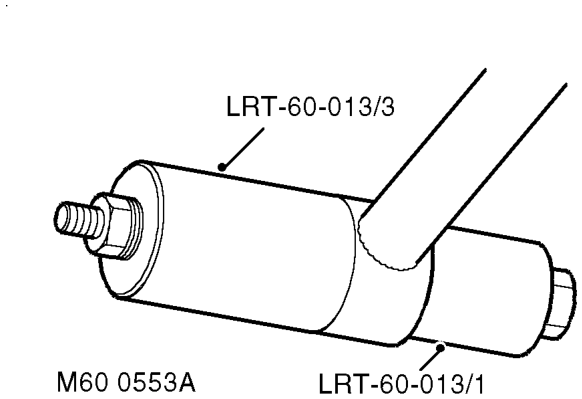

  1. Use tool LRT-60-013 fitted with LRT-60-013/1 and LRT-60-013/3 to press out bushes from Panhard rod.

Refit

  1. Clean bush locations in Panhard rod.
Bushes - panhard rod – Clean bush locations in Panhard rod.

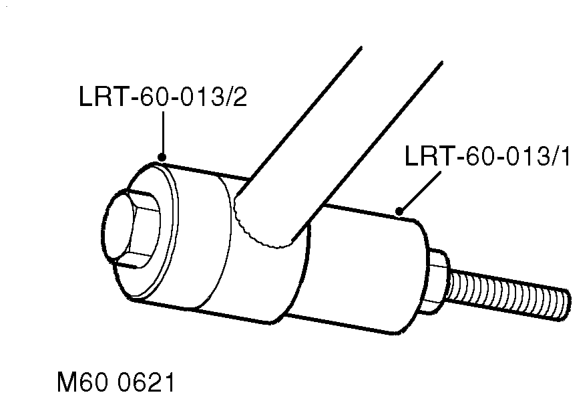

  1. Use tool LRT-60-013 fitted with LRT-60-013/1 and LRT-60–013/2 to press new bushes into Panhard rod. Ensure pressure is applied to the outer edge of the bush, not the rubber inner.
  2. Position Panhard rod to axle and chassis.
  3. Fit bolts securing Panhard rod but do not tighten at this stage.
  4. Remove stand(s) and lower vehicle.
  5. Tighten bolts securing Panhard rod to 230 Nm (170 lbf.ft).

CAUTION: Nuts and bolts must be tightened with weight of vehicle on suspension.
