Pressure transducer - ACE

Refit

1. Ensure new filter has 'O' ring fitted, then fit filter to valve block.
2. Fit new 'O' ring to filter cap. Fit cap and tighten to 35 Nm (26 lbf.ft).
3. Lower vehicle.
4. Check fluid level in ACE/PAS reservoir. FRONT SUSPENSION, ADJUSTMENTS, Fluid level check - ACE system.
5. Start and run engine for 2 minutes, then recheck fluid level in ACE/PAS reservoir. FRONT SUSPENSION, ADJUSTMENTS, Fluid level check - ACE system.

Pressure transducer - ACE

$% 60.60.22

CAUTION: The ACE hydraulic system is extremely sensitive to the ingress of dirt or debris. The smallest amount could render the system unserviceable. It is imperative that the following precautions are taken. l ACE components are thoroughly cleaned externally before work commences; l all opened pipe and module ports are capped immediately; l all fluid is stored in and administered through clean containers.

Remove

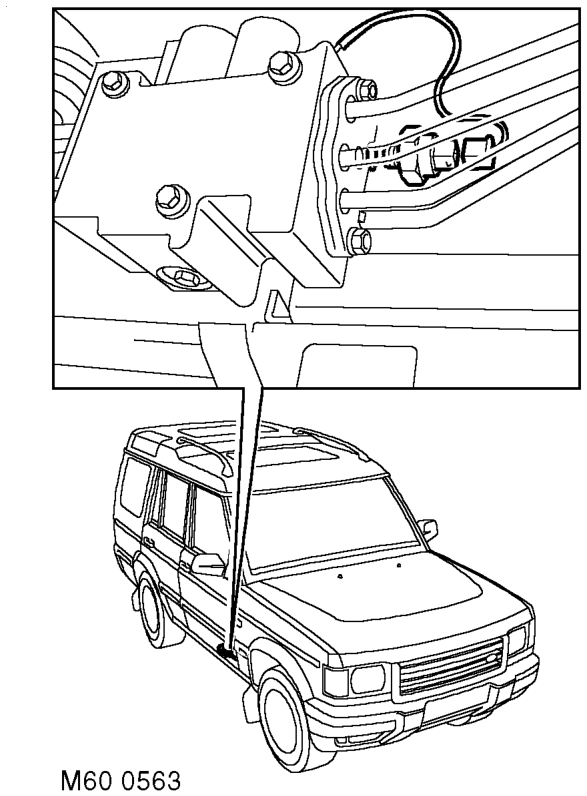

1. Raise vehicle on a ramp.

2. Disconnect multiplug from transducer.
3. Position container to collect fluid spillage.
4. Remove pressure transducer and discard 'O' ring.

CAUTION: Always fit plugs to open connections to prevent contamination.
