$% 60.60.40

CAUTION: The ACE hydraulic system is extremely sensitive to the ingress of dirt or debris. The smallest amount could render the system unserviceable. It is imperative that the following precautions are taken. l ACE components are thoroughly cleaned externally before work commences; l all opened pipe and module ports are capped immediately; l all fluid is stored in and administered through clean containers.

Remove

1. Raise vehicle on a ramp.
2. Remove RH front road wheel.

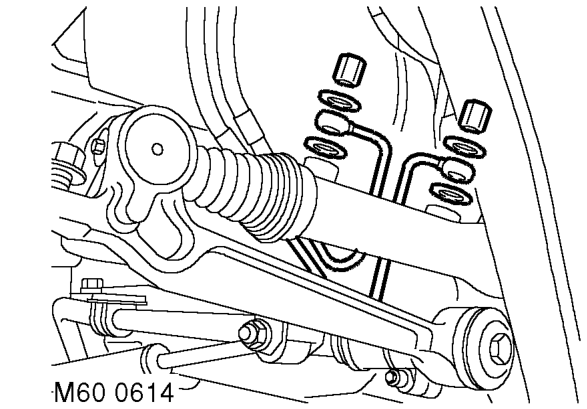

3. Position container to collect fluid spillage.

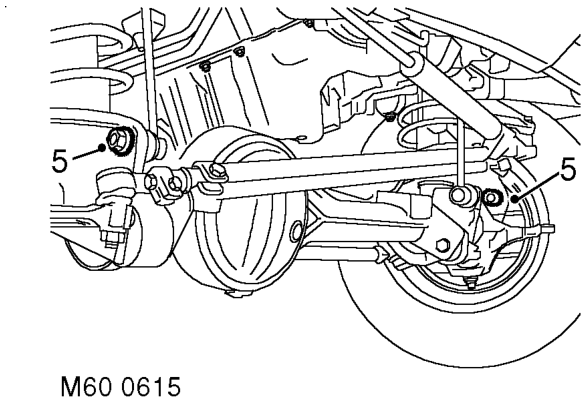

4. Remove cap nuts securing fluid pipes to actuator. Disconnect pipes and discard sealing washers.

CAUTION: Always fit plugs to open connections to prevent contamination.

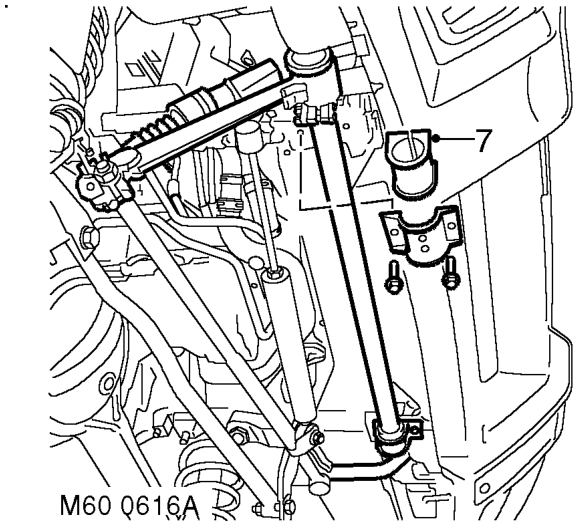

5. Remove 2 nuts securing anti-roll bar links to axle. Release links from axle.

6. With assistance, remove 2 bolts and remove both clamp plates from torsion bar.
7. Remove mounting rubbers from torsion bar.
8. Remove torsion bar and actuator assembly.

CAUTION: While removed from the vehicle, ensure torsion bar is stored without any load on the anti-roll bar links, or the ball joints and/or link rods could be damaged.
