Accelerometer - ACE - lower Pump - ACE - V8

Accelerometer - ACE - lower Pump - ACE - V8

$% 60.60.03 $% 60.60.10

CAUTION: The accelerometer is an extremely CAUTION: The ACE hydraulic system is delicate component and can easily be rendered extremely sensitive to the ingress of dirt or unserviceable. Never use an accelerometer debris. The smallest amount could render the which has been dropped or subjected to system unserviceable. It is imperative that the mistreatment of any type. following precautions are taken. l Remove

1. Raise vehicle on a ramp. l
2. Disconnect multiplug from accelerometer.

l

Remove

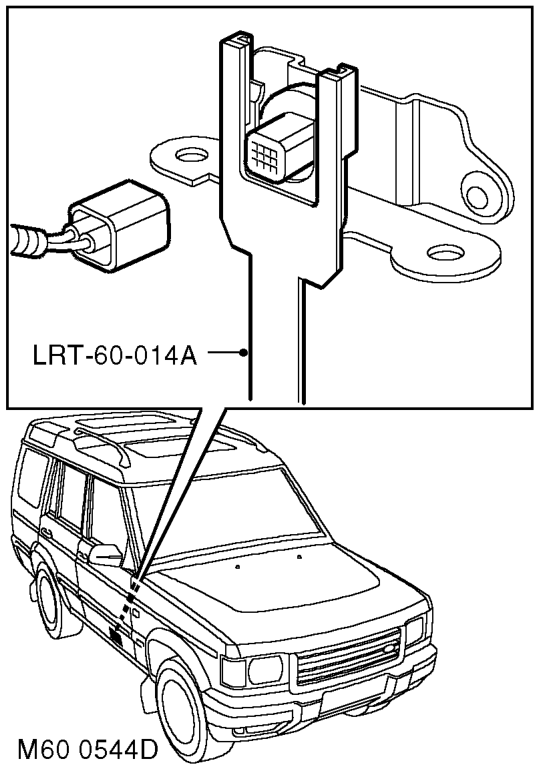

3. Use LRT-60-014A to release clip and remove accelerometer.

Refit

1. Use LRT-60-014A, fit accelerometer fully into clip.
2. Connect accelerometer multiplug.
3. Lower vehicle.
4. If a replacement accelerometer has been fitted, use TestBook to calibrate ACE system.

ACE components are thoroughly cleaned externally before work commences; all opened pipe and module ports are capped immediately; all fluid is stored in and administered through clean containers.

1. Remove auxiliary drive belt. CHARGING AND STARTING, REPAIRS, Belt - auxiliary drive.

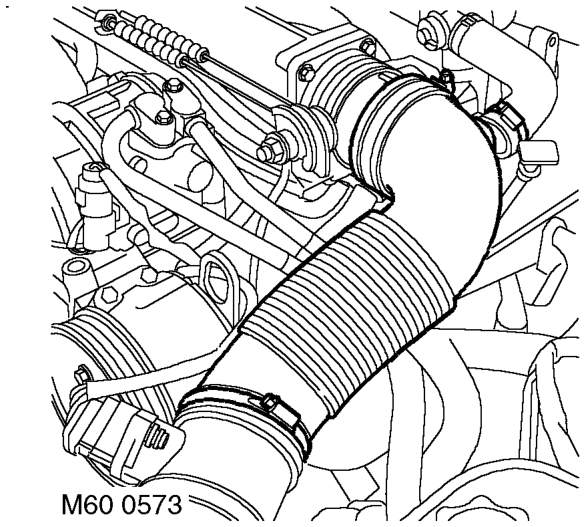

2. Loosen 3 clips securing air intake hose. Release air intake hose and position aside. Note: Pre 03 MY air intake hose illustrated.
