Bushes - radius arm

$% 60.35.18

Remove

  1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

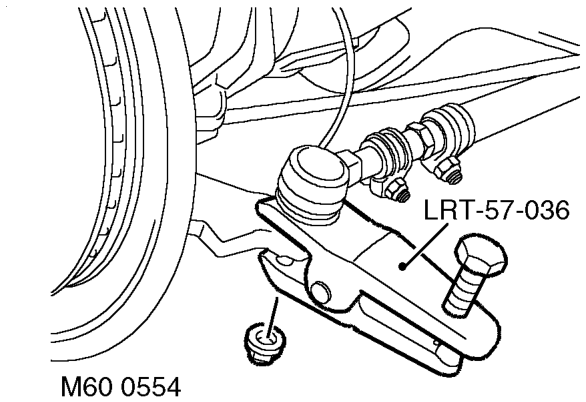

  1. Remove road wheel.
Bushes - radius arm – Remove road wheel.

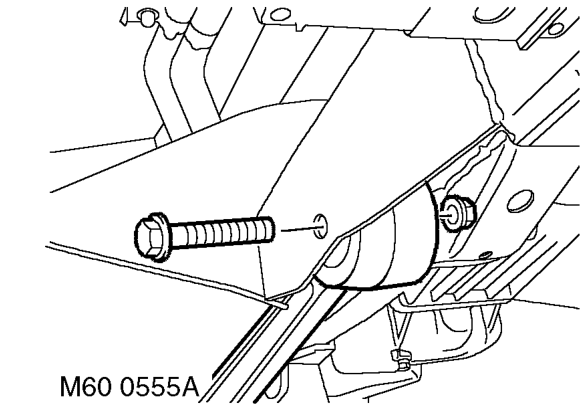

  1. Remove nut securing track rod to steering knuckle. Use LRT-57-036 to break taper, then release track rod and position aside.
Bushes - radius arm – Remove nut securing track rod to steering knuckle. Use LRT-57-036 to break taper, then rel

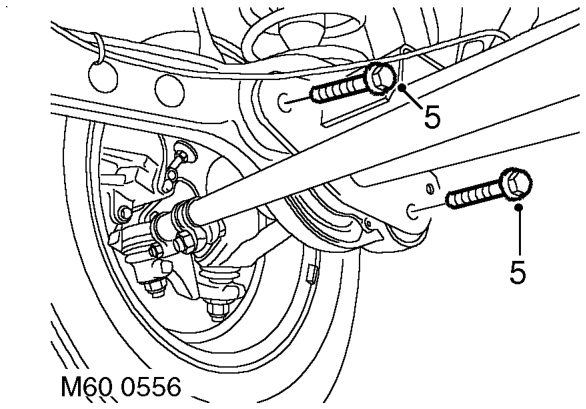

  1. Remove nut and bolt securing radius arm to chassis.
Bushes - radius arm – Remove nut and bolt securing radius arm to chassis.
  1. Remove nuts securing radius arm to axle. Remove rear bolt and lower the radius arm. Remove front bolt and remove radius arm from vehicle.

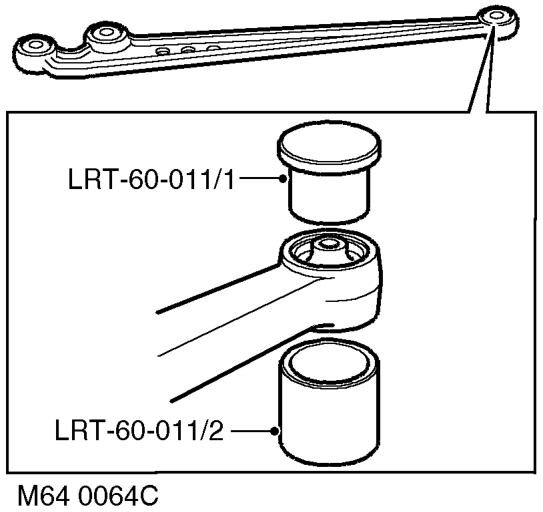

  2. Press out bushes from axle end of radius arm using a length of steel tubing.
Bushes - radius arm – Press out bushes from axle end of radius arm using a length of steel tubing.
  1. Press out bush from rear of radius arm: l Use LRT-60-011/1 and LRT-60-011/2 to remove bush.
