Solenoid - directional control valve - ACE

Solenoid - directional control valve - ACE

$% 60.60.24

Remove

1. Raise vehicle on a ramp.

2. Disconnect multiplug from solenoid.

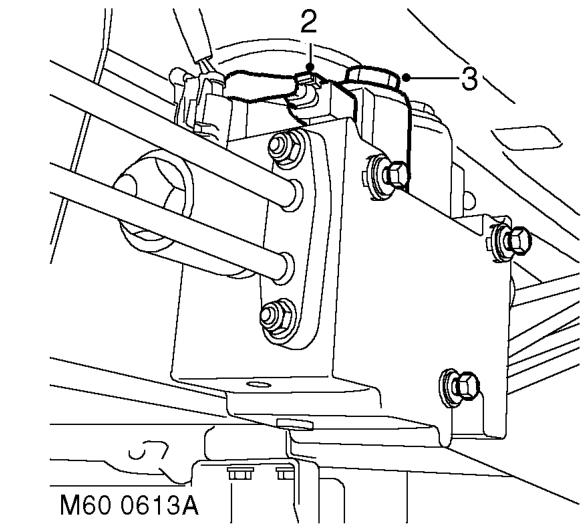

3. Loosen cap securing solenoid to directional control valve.
4. Remove 3 bolts securing valve block to chassis, lower block sufficiently only to remove solenoid.
5. Remove cap securing solenoid to directional control valve and discard 'O' ring.
6. Remove solenoid from directional control valve and discard 'O' ring from base of valve.

Refit

1. Ensure solenoid and directional control valve are clean.
2. Fit new 'O' ring to base of directional control valve.
3. Fit solenoid to directional control valve, with arrow on solenoid pointing up and connector in correct position.
4. Fit new 'O' ring to solenoid securing cap. Fit cap to solenoid but do not tighten at this stage.
5. Fit 3 bolts securing valve block to chassis and tighten to 18 Nm (13 lbf.ft) .
6. Tighten solenoid securing cap to 11 Nm (8 lbf.ft) .
7. Connect multiplug to solenoid.
8. Lower vehicle.

Pipe assembly - valve block to front actuator - ACE

$% 60.60.31

Introduction

CAUTION: The ACE hydraulic system is extremely sensitive to the ingress of dirt or debris. The smallest amount could render the system unserviceable. It is imperative that the following precautions are taken. l ACE components are thoroughly cleaned externally before work commences; l all opened pipe and module ports are capped immediately; l all fluid is stored in and administered through clean containers.

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove RH front road wheel.

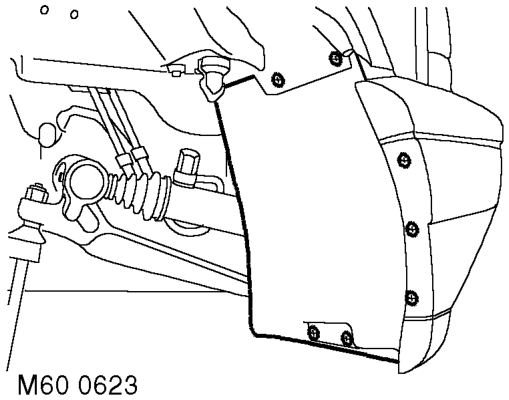

3. Remove 7 screws securing RH front wheel arch liner extension and remove extension.
