Land Rover Discovery II (UK)30 · Front suspension
30 · Steering & suspension

Solenoid - directional control valve - ACE (page 2 of 3)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Front suspensionSolenoid - directional control valve - ACE · page 2 of 3

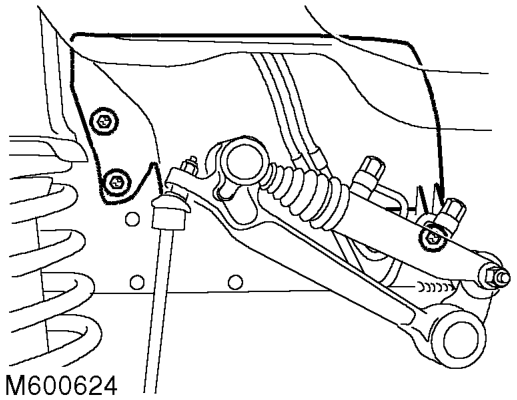

Diagram
  1. Remove 3 screws securing splash shield and remove shield.
  2. Position containers under valve block and actuator to collect fluid spillage.
  3. Remove bolt securing pipe clamp to chassis and remove clamp.

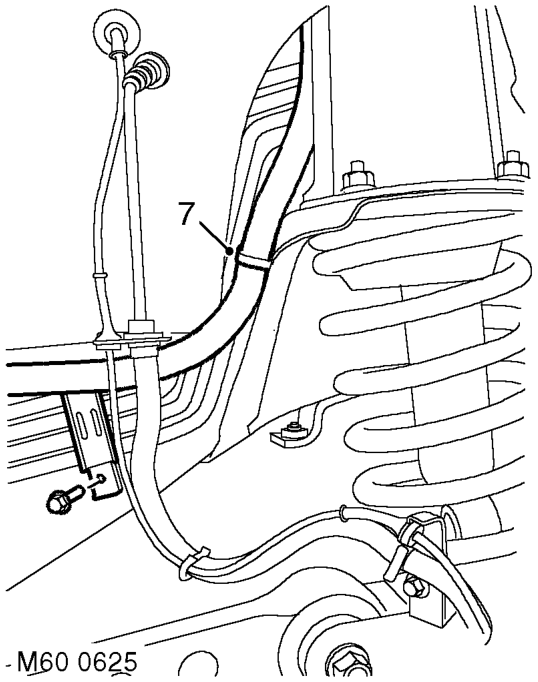

Remove bolt securing pipe clamp to chassis and remove clamp.
  1. Release clamping plate and pipes from valve
  2. Release harness strap from suspension turret and position harness aside.

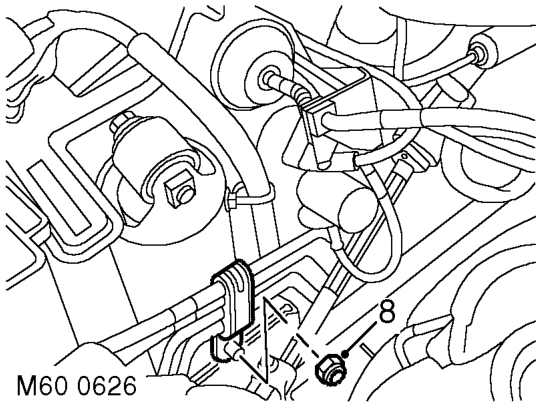

Release harness strap from suspension turret and position harness aside.
  1. Remove nut securing pipe clamp to bracket on suspension turret and remove clamp.

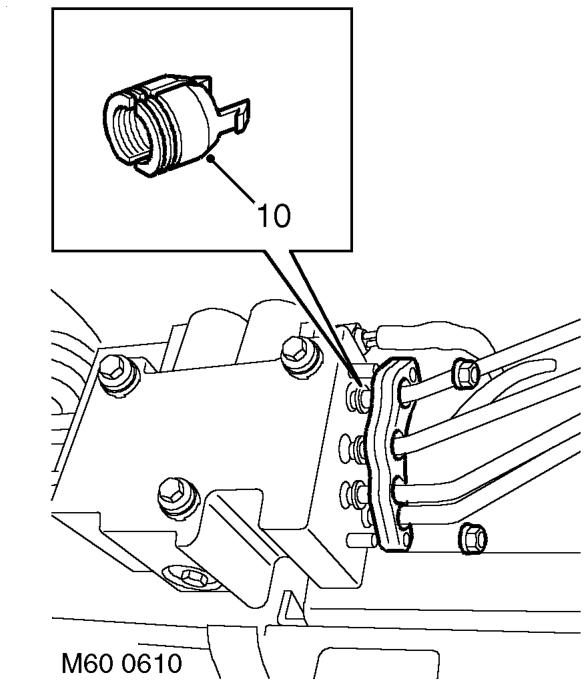

Remove nut securing pipe clamp to bracket on suspension turret and remove clamp.
  1. Remove 2 nuts securing pipe clamping plate to valve block.

block. Remove collets and release pipes from clamping plate.

CAUTION: Always fit plugs to open connections to prevent contamination.
