Accelerometer - ACE - upper

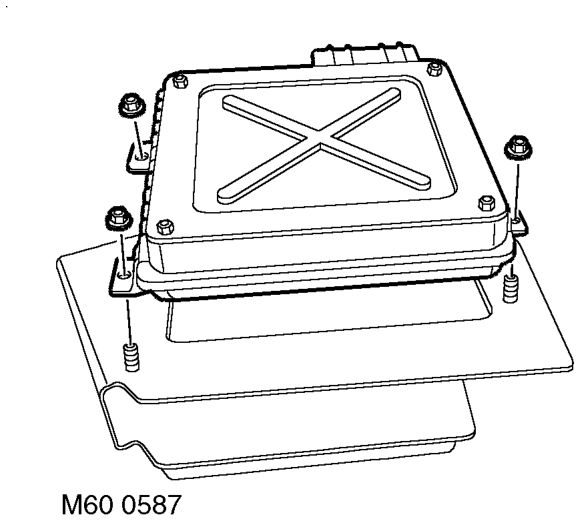

6. Remove 3 nuts securing ACE ECU and remove ACE ECU.

Refit

1. Fit ACE ECU to bracket and secure with nuts.
2. Fit ECU's and bracket assembly to body and secure with nuts.
3. Connect multiplugs to ACE ECU and SLABS ECU.
4. Fit BCU. BODY CONTROL UNIT, REPAIRS, Body control unit (BCU).
5. If a replacement ACE ECU has been fitted, use TestBook to calibrate ACE system.

Accelerometer - ACE - upper

$% 60.60.02

CAUTION: The accelerometer is an extremely delicate component and can easily be rendered unserviceable. Never use an accelerometer which has been dropped or subjected to mistreatment of any type.

Remove

1. Remove front stowage pocket. INTERIOR TRIM COMPONENTS, REPAIRS, Stowage pocket - front.

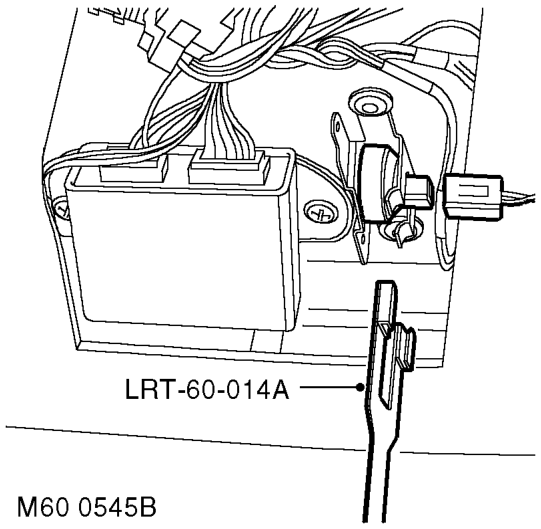

2. Disconnect multiplug from accelerometer.

3. Use LRT-60-014A to release clip and remove accelerometer.

Refit

1. Using LRT-60-014A, fit accelerometer fully into clip.
2. Connect accelerometer multiplug.
3. Fit front stowage pocket. INTERIOR TRIM COMPONENTS, REPAIRS, Stowage pocket - front.
4. If a replacement accelerometer has been fitted, use TestBook to calibrate ACE system.
