Damper - front (page 2 of 2)

Refit

10. Fit road wheel and tighten nuts to 140 Nm (103
11. Remove stand(s) and lower vehicle.

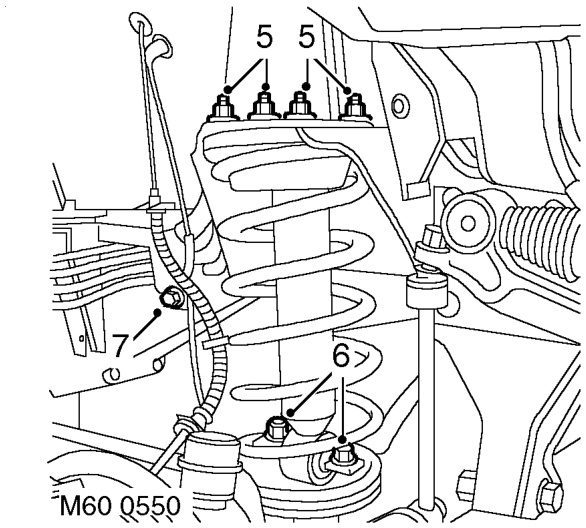

5. Remove 4 nuts securing turret base to chassis.
6. Remove 2 bolts securing damper to axle.
7. ACE models: Remove bolt securing ACE pipe clamp to chassis.

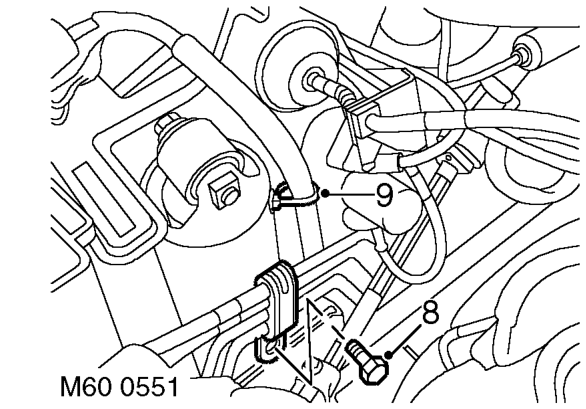

8. ACE models: Remove bolt securing ACE pipe clamp to turret.

9. Release harness clip from turret.
10. Raise turret and remove through bolt.
11. Compress damper and manoeuvre turret from engine bay.
12. Remove damper.
1. Position damper and manoeuvre turret into position. Raise damper and align to turret. Fit through bolt but do not tighten at this stage.
2. Align damper assembly to spring seat.
3. Fit bolts securing damper to axle and tighten to 45 Nm (33 lbf.ft).
4. Fit nuts securing turret to chassis and tighten to 23 Nm (17 lbf.ft).
5. Tighten through bolt to 125 Nm (92 lbf.ft).
6. ACE models: Position ACE pipe clamp to chassis and secure with bolt.
7. ACE models: Position ACE pipe clamp to turret and secure with bolt.
8. Secure harness to turret.
9. RH damper: Reposition coolant reservoir.

lbf.ft).
