Actuator - front - ACE (page 2 of 2)

Refit

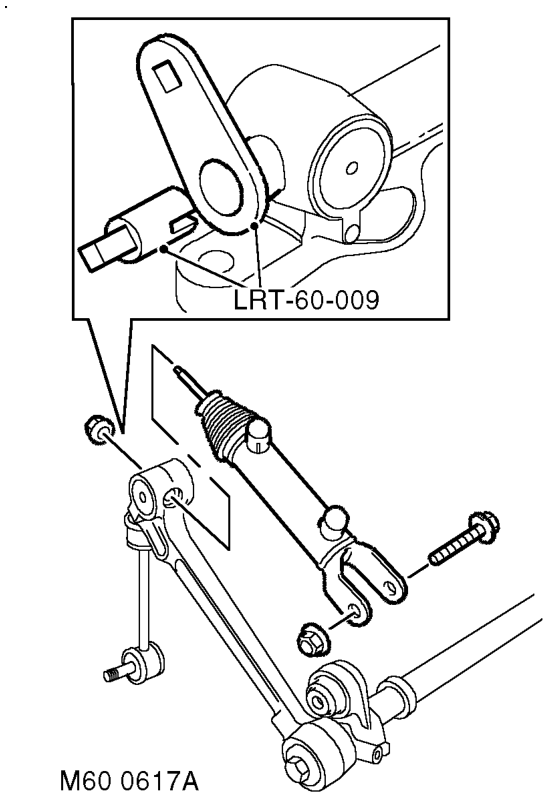

9. Use LRT-60-009 to remove nut securing actuator to long arm.
10. Lower vehicle.
10. Remove nut and bolt securing actuator to short arm and remove actuator.

CAUTION: The short arm and torsion bar are supplied as an assembly and must not be separated.

1. Fit actuator to torsion bar. Use LRT-60-009to tighten actuator to long arm nut to 48 Nm (35 lbf.ft). Tighten actuator to short arm nut and bolt to 180 Nm (133 lbf.ft).
2. Ensure torsion bar mounting rubber mating faces are clean and free from damage.
3. Fit mounting rubbers to torsion bar.
4. With assistance, position torsion bar and actuator assembly to vehicle. Fit clamp plates and tighten bolts to 45 Nm (33 lbf.ft).
5. Ensure washer is in place on lower ball joint of each anti-roll bar link, then connect lower ball joint to axle and tighten nuts to 100 Nm (74 lbf.ft).
6. Connect pipes to actuator with cap nuts and new sealing washers. Tighten cap nuts to 29 Nm (21 lbf.ft). Ensure pipes are not under tension or kinked.
7. Renew ACE high pressure filter. FRONT SUSPENSION, REPAIRS, Filter - high pressure - ACE.
8. Bleed ACE hydraulic system. FRONT SUSPENSION, ADJUSTMENTS, ACE hydraulic system bleeding.
9. Fit RH front road wheel and tighten nuts to 140 Nm (103 lbf.ft).
