Valve block - ACE (page 3 of 3)

6. Fit bolt securing front pipe clip to chassis and tighten to 6 Nm (4.4 lbf.ft). Filter - high pressure - ACE
7. Connect rear pipes and clamping plate to valve block. To avoid damage to seals, keep pipes

$% 60.60.21 square to valve block. Fit and tighten nuts securing clamping plate to valve block to 21 Nm (15 lbf.ft). CAUTION: The ACE hydraulic system is

CAUTION: Ensure pipes are installed in extremely sensitive to the ingress of dirt or their correct ports or serious system debris. The smallest amount could render the damage will occur. system unserviceable. It is imperative that the following precautions are taken. l

8. Fit bolts securing rear pipe clips to chassis and tighten to 6 Nm (4.4 lbf.ft) .

l

9. Connect 4 multiplugs to valve block.
10. If the same valve block has been refitted, renew

l

ACE high pressure filter. FRONT SUSPENSION, REPAIRS, Filter - high pressure - ACE.

11. Bleed ACE hydraulic system. Remove FRONT SUSPENSION, ADJUSTMENTS, ACE hydraulic system bleeding.
12. Lower vehicle.

ACE components are thoroughly cleaned externally before work commences; all opened pipe and module ports are capped immediately; all fluid is stored in and administered through clean containers.

1. Raise vehicle on a ramp.

2. Position container to collect fluid spillage.

3. Remove filter cap and discard 'O' ring.

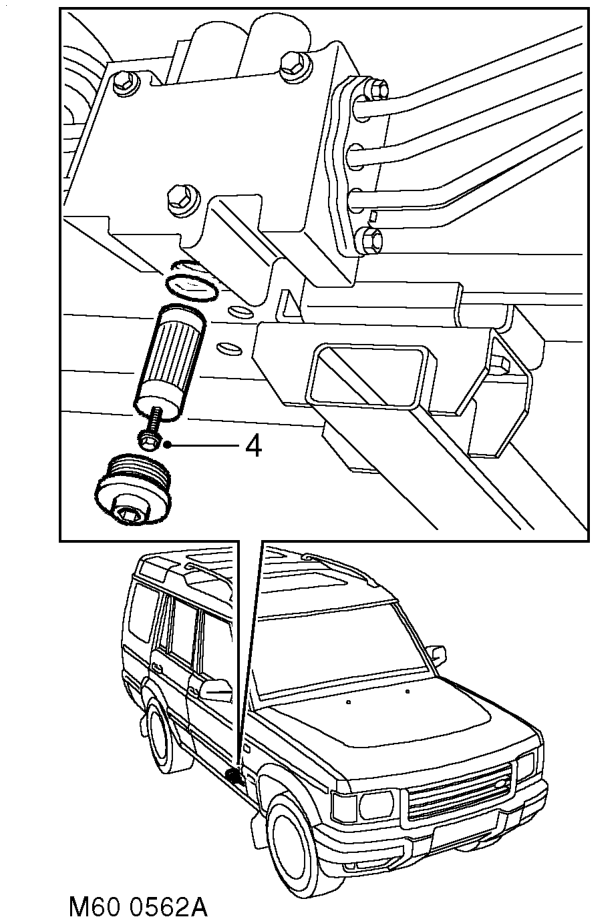

4. Fit M6 bolt into base of filter and pull on bolt to remove filter from valve block. Do not turn filter in valve block.

CAUTION: Always fit plugs to open connections to prevent contamination.
