Wheel hub (page 2 of 2)

Refit

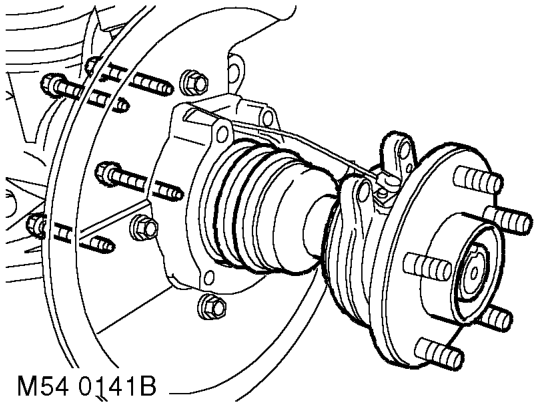

9. Remove 4 bolts securing wheel hub to steering knuckle.
10. Release wheel hub from steering knuckle, then remove wheel hub and drive shaft assembly from axle.

CAUTION: Do NOT remove the ABS sensor from the hub. The hub and the sensor are supplied as an assembly.

11. Position the wheel hub and drive shaft on a press, place supports beneath the wheel studs and press the drive shaft from the wheel hub.
12. Remove drive shaft oil seal from axle casing.
1. Clean drive shaft oil seal recess, drive shaft splines, oil seal running surface, wheel hub and steering knuckle mating faces, ABS sensor and sensor recess.

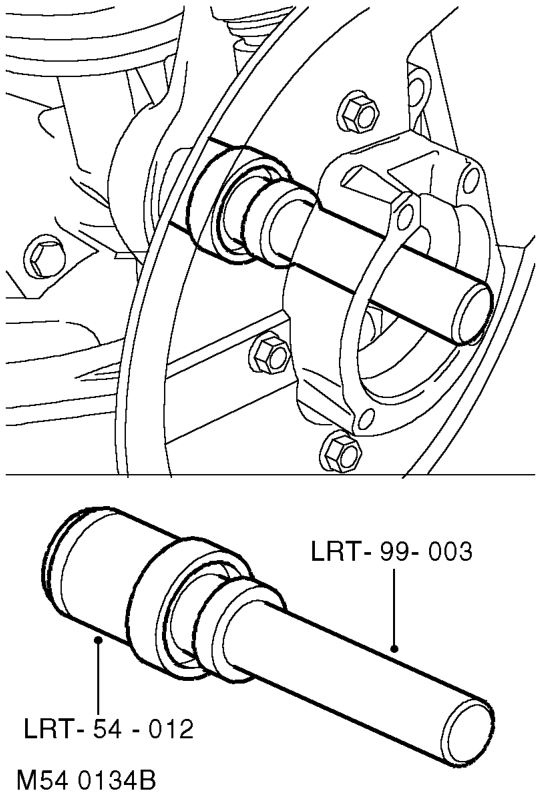

2. Lubricate lip of new drive shaft oil seal and running surface on drive shaft with clean differential oil. CAPACITIES, FLUIDS AND LUBRICANTS, Lubrication.

3. Use tool LRT-51-012 to fit new drive shaft oil seal to axle casing.
4. Fit drive shaft to axle casing.
5. Apply anti-seize compound to wheel hub and steering knuckle mating face.
