Land Rover Discovery II (UK)30 · Front suspension
30 · Steering & suspension

Wheel hub

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Wheel hub
Front suspensionWheel hub · page 1 of 2

Wheel hub

$% 60.25.01

Remove

Wheel hub – $% 60.25.01

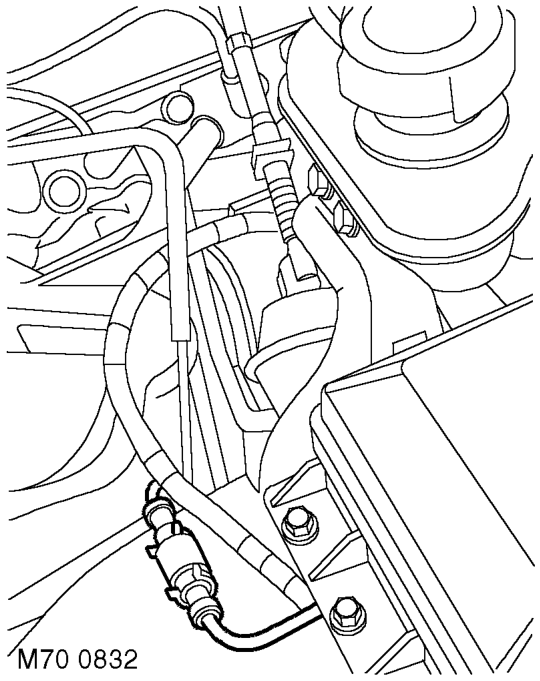

  1. Release ABS sensor harness grommet from inner wing valance and disconnect multiplug.
  2. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel.
Wheel hub – Remove road wheel.

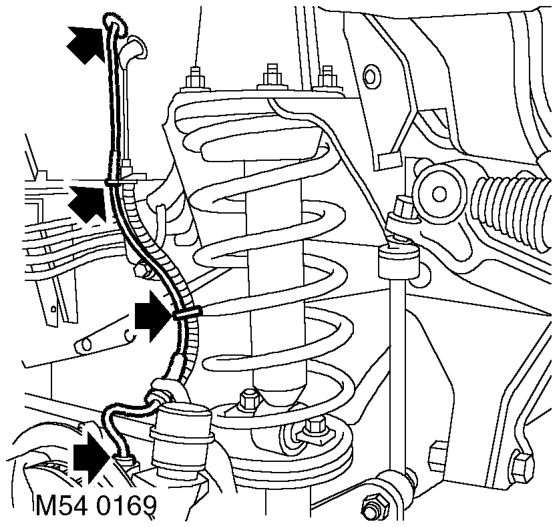

  1. Pull ABS sensor harness through aperture into wheel arch.
  2. Release harness from brackets on inner wing valance, suspension turret and front hub.
Wheel hub – Release harness from brackets on inner wing valance, suspension turret and front hub.

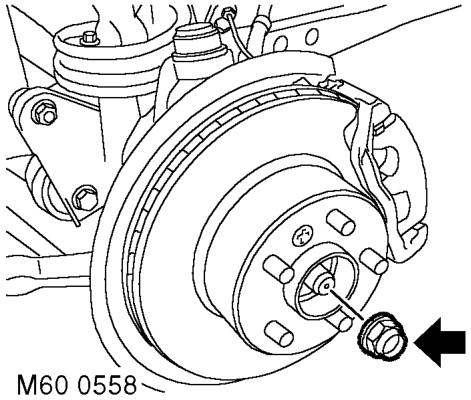

  1. Release stake from drive shaft nut.
  2. With assistance, remove drive shaft nut. Discard the nut.
  3. Remove front brake disc. BRAKES, REPAIRS, Brake disc - front.
