Console - centre - manual models (page 2 of 2)

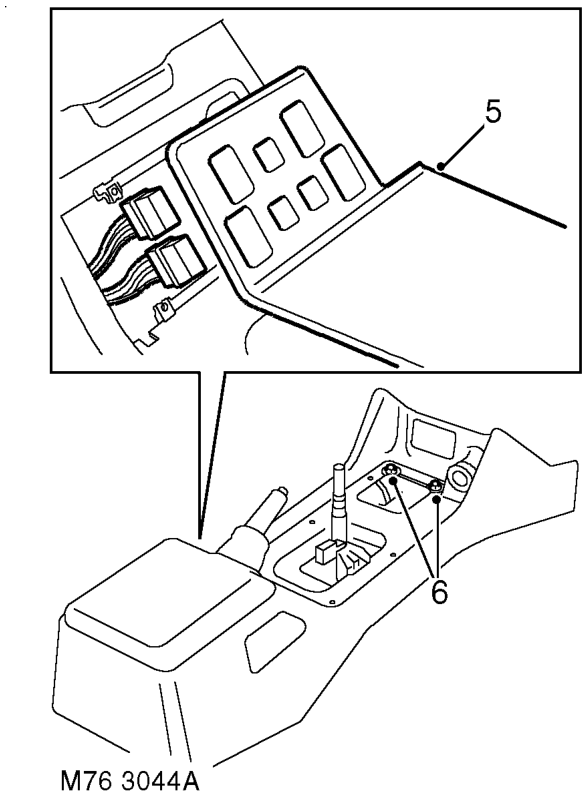

6. Models with veneer trim: Release veneered console cover from console and remove cigar lighter element. Disconnect multiplugs from switch pack and remove veneered console 10. Move handbrake to fully upward position. cover. 11. Release electric seat switches from console.
7. Remove 2 bolts securing forward edge of 12. Disconnect multiplugs from switches and console to transmission tunnel.
13. Remove 2 bolts securing rear of console to
14. Release centre console from fascia.

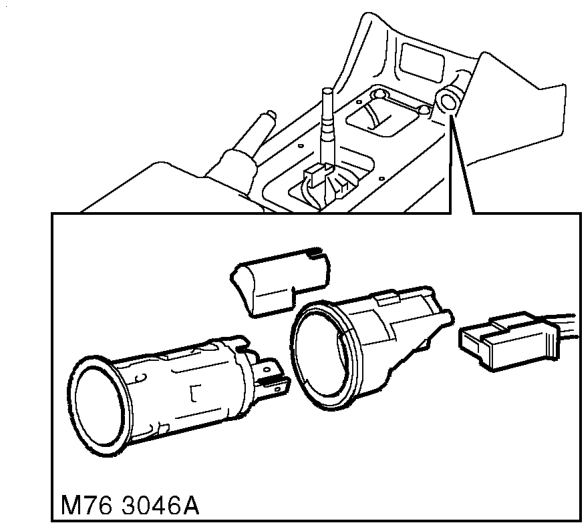

15. Disconnect multiplug and bulb from cigar

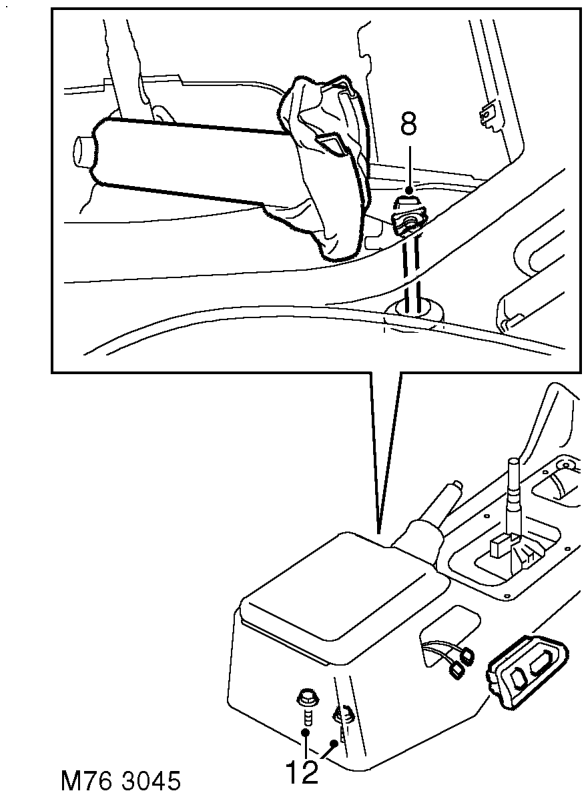

8. Release handbrake gaiter from console.
9. Remove clip and clevis pin securing cable to handbrake.

remove.

transmission tunnel.

lighter.
