24. Remove front sunroof aperture trim.

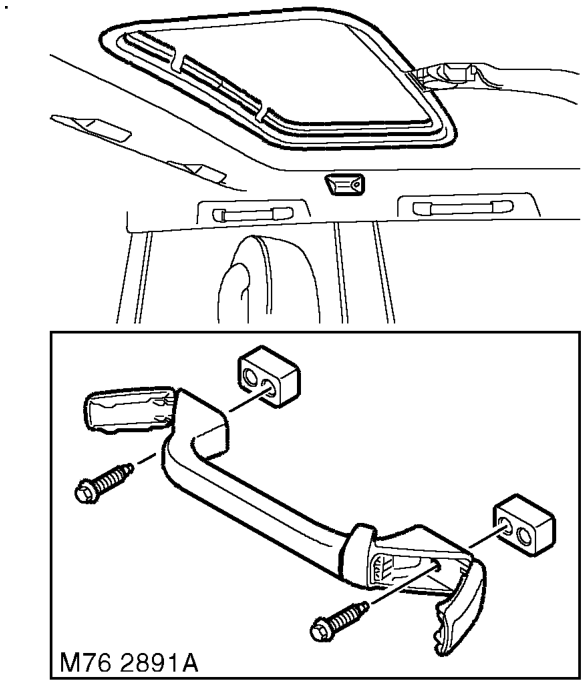

25. Release end caps from all grab handles.
26. Remove 2 bolts securing each grab handle to roof.
27. Remove all 4 grab handles.

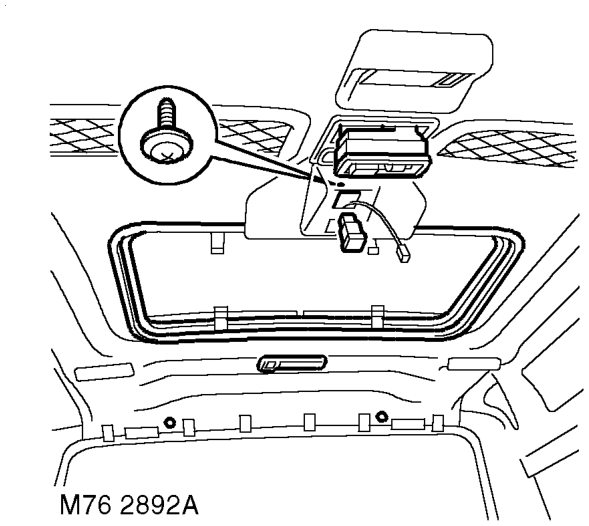

28. Models with volumetric alarm: Release front volumetric sensor from headlining and disconnect multiplug.

29. Models with rear A/C: a Release rear A/C control panel from headlining. b Disconnect 2 multiplugs and 2 Lucar connectors from rear A/C control panel. c Remove rear A/C control panel.
30. Release rear interior lamp from headlining and disconnect multiplug.
31. Remove rear interior lamp.
32. Remove 2 clips securing rear of headlining to roof.
33. Release rear sunroof switch from headlining.
34. Disconnect multiplug and remove rear sunroof switch.
35. Remove screw securing headlining to roof.
36. With assistance, remove headlining.

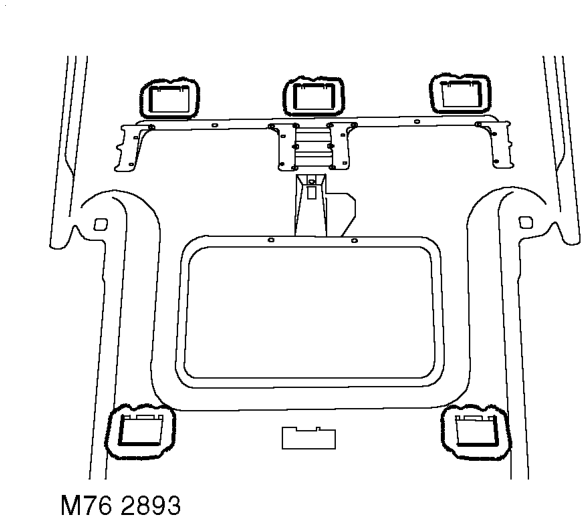

37. Models with rear A/C: a Remove foam pads from air vents. b Release 2 rear air vents from headlining. c Release 3 central air vents from headlining.
