Land Rover Discovery II (UK)23 · Manual gearbox - R380
23 · Transmission

Reassembly (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul
Manual gearbox - R380Reassembly · page 2 of 2
Diagram

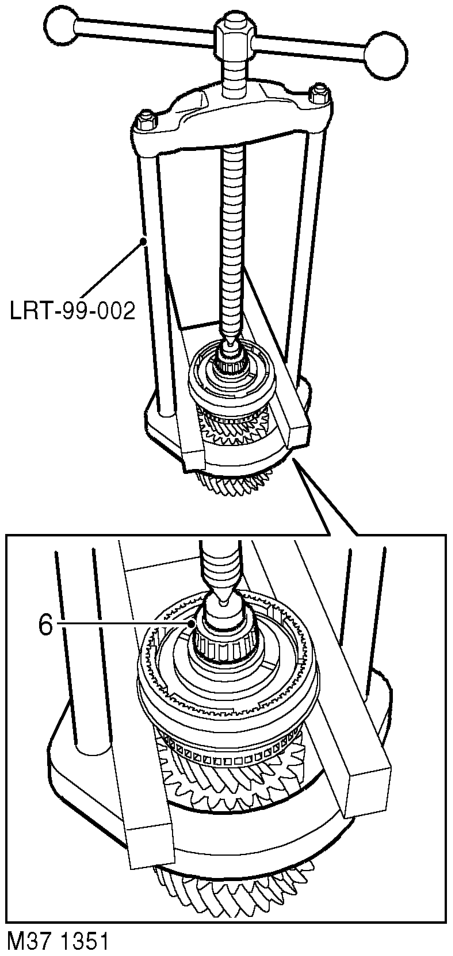

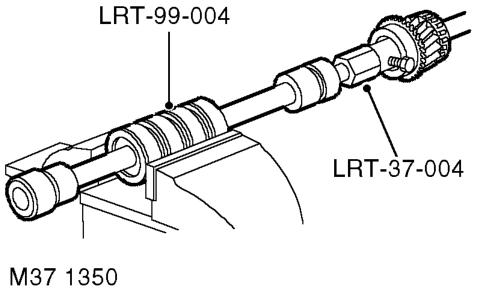

  1. Using tool LRT-37-004, and LRT-99-004, remove pilot bearing track from input shaft.
Using tool LRT-37-004, and LRT-99-004, remove pilot bearing track from input shaft.

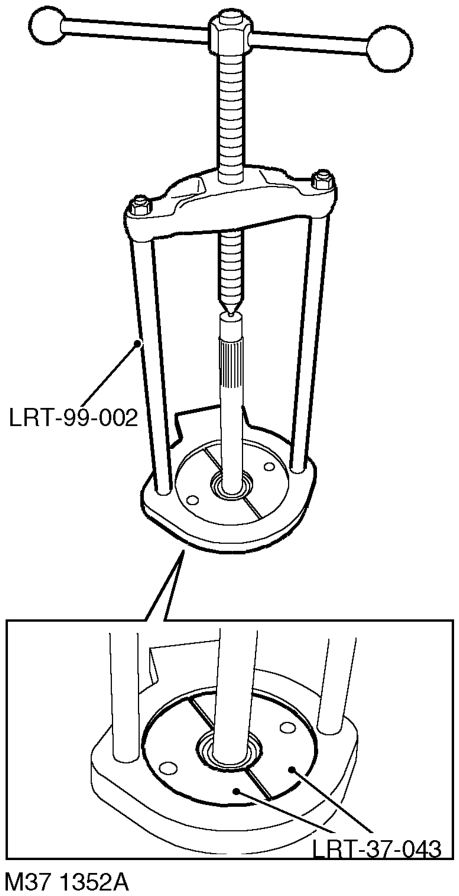

  1. Invert output shaft and using tool LRT- 99-002 and support bars under 3rd gear, press off pilot bearing.
Invert output shaft and using tool LRT- 99-002 and support bars under 3rd gear, press off
  1. Using tool LRT-37-043 and LRT-99-002, remove taper roller bearing from input shaft.
Using tool LRT-37-043 and LRT-99-002, remove taper roller bearing from input shaft.

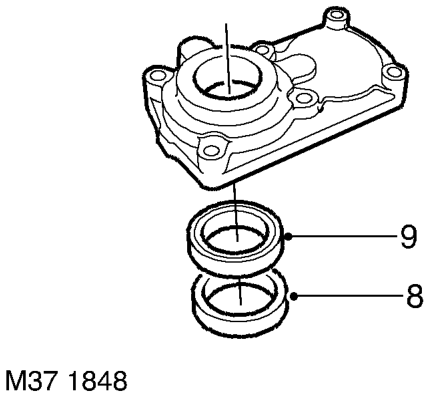

  1. Using a suitable soft metal drift, remove bearing outer track from front cover.
  2. Remove and discard input shaft oil seal from front cover.
