Handbrake lever (page 2 of 3)

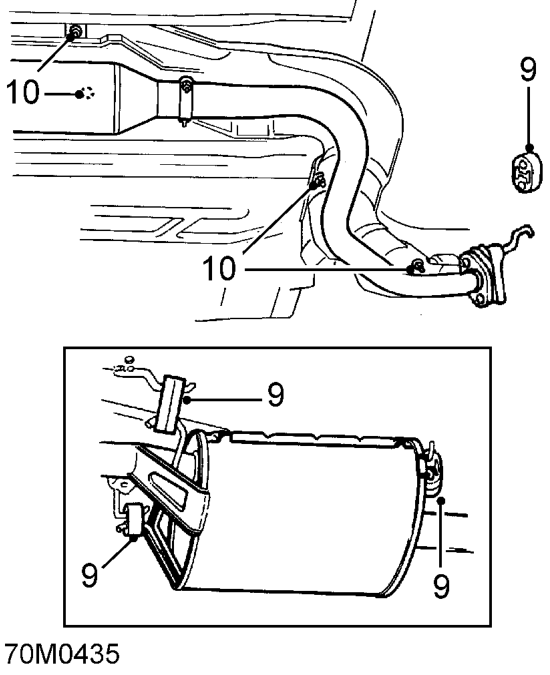

9. Release exhaust pipe rear mountings and lower pipe.
10. Remove 4 bolts securing fuel tank heat shield to body and remove heat shield.

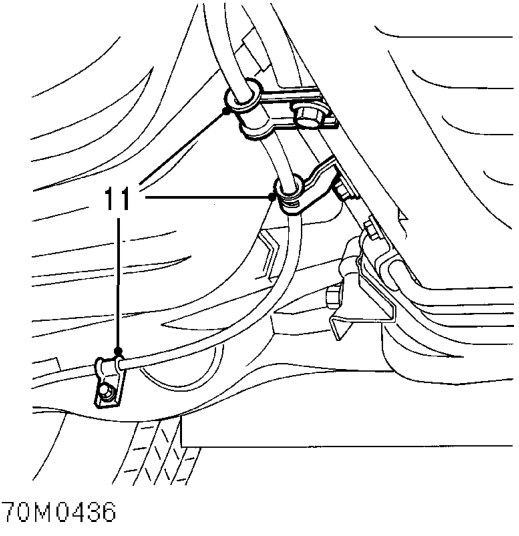

11. Remove 3 bolts securing handbrake cable clips to body and trailing arm.

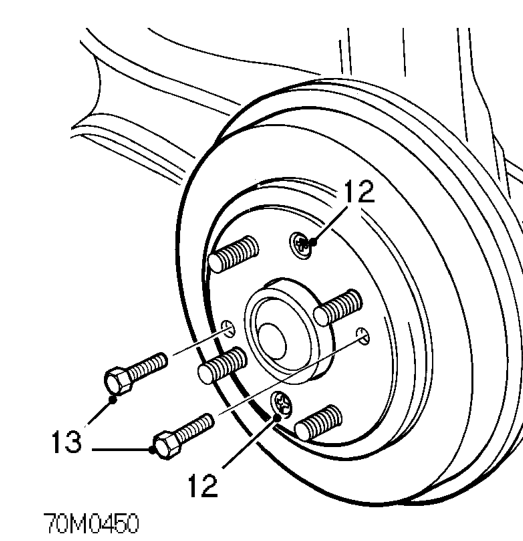

12. Remove 2 screws securing brake drum.
13. Screw 2 screws into drum and tighten equally to ease drum off hub.

NOTE: If shoes prevent drum from being withdrawn, refer to Rear Brake Drum. See this section.
