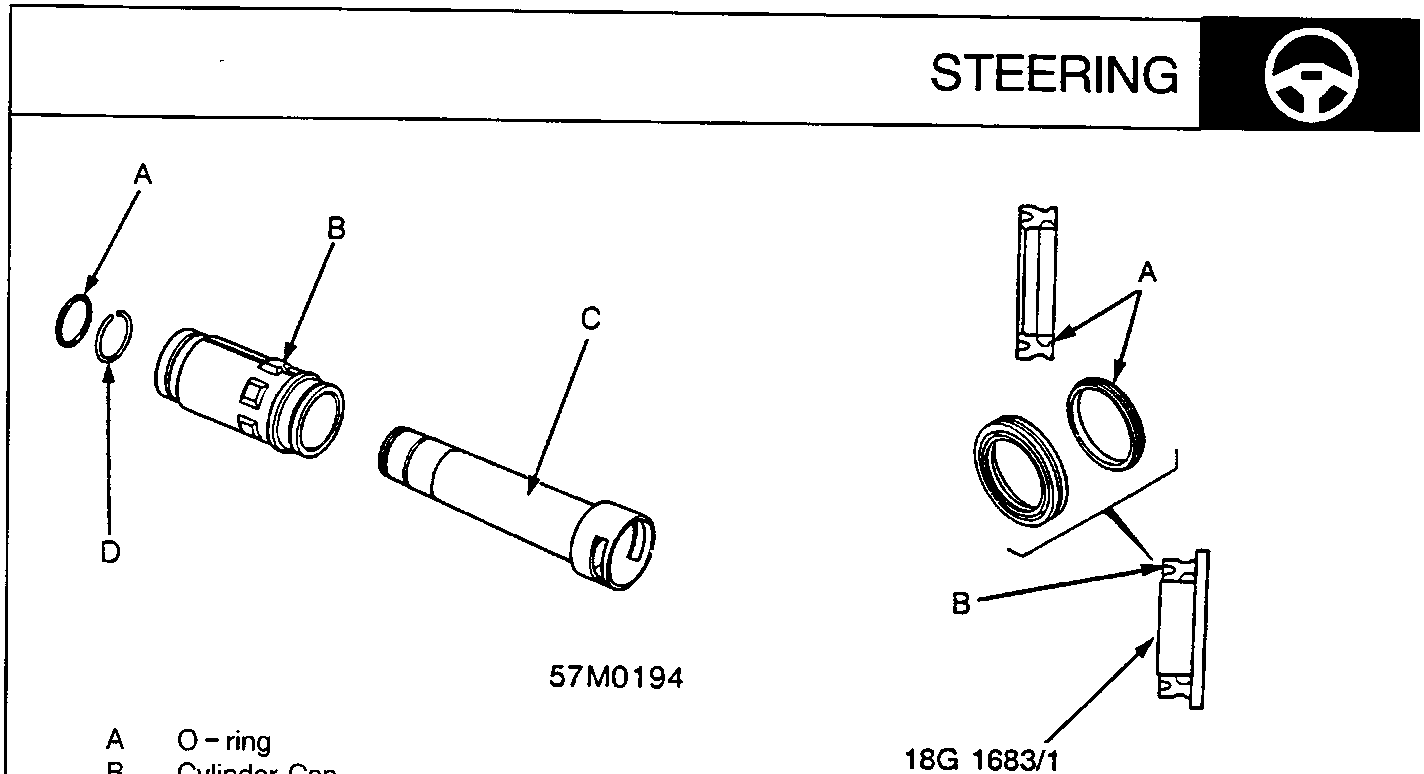

Exploded view of steering cylinder components including O-ring, cylinder cap, seal retainer, snap ring, back-up ring, and cylinder end seal.
  1. Slide the cylinder cap onto the seal retainer and install the snap ring.
  2. Coat the new O-ring with power steering fluid and install it on the seal retainer.

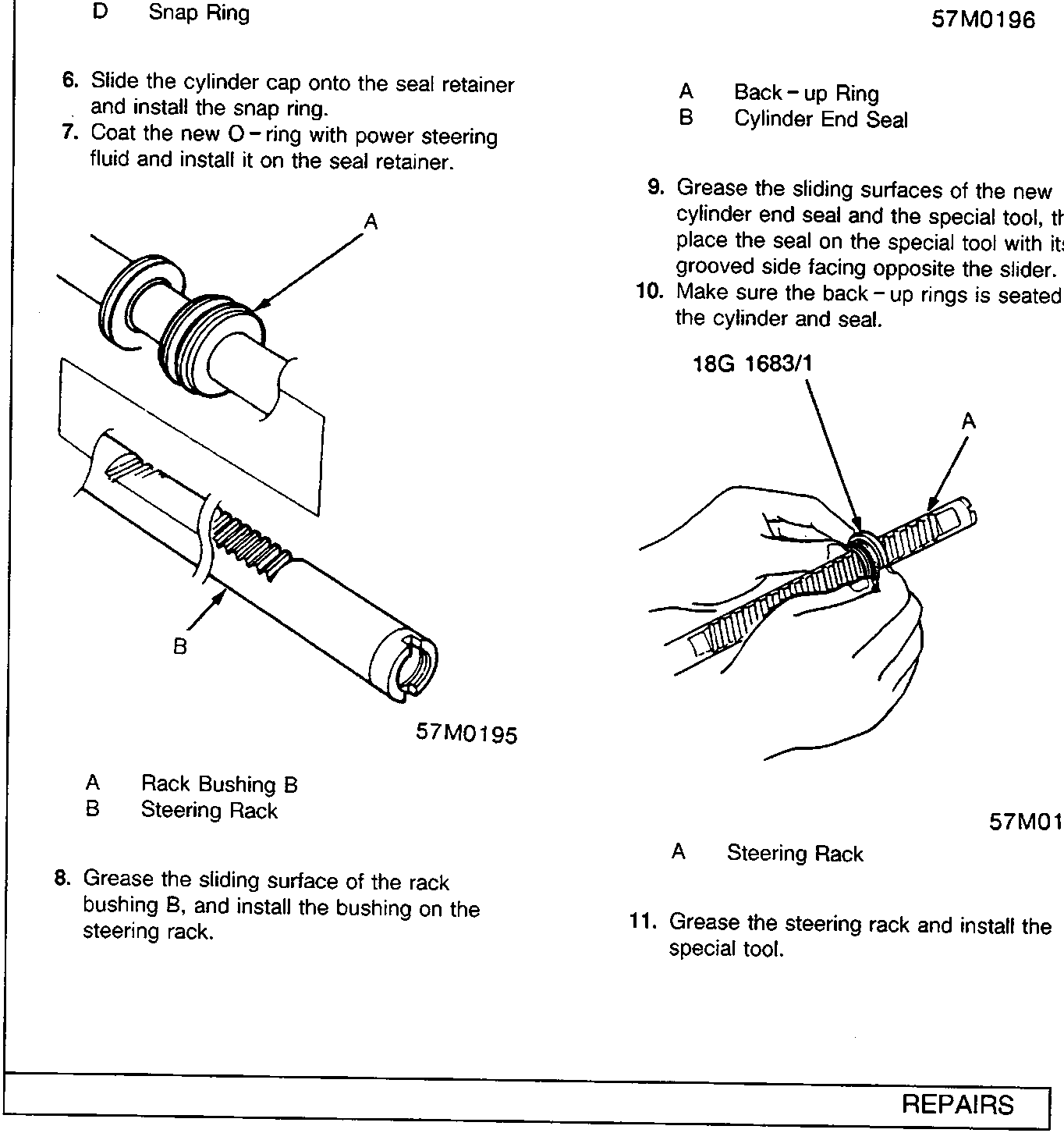

Installation of rack bushing onto the steering rack.
  1. Grease the sliding surface of the rack bushing B, and install the bushing on the steering rack.
  1. Grease the sliding surfaces of the new cylinder end seal and the special tool, then place the seal on the special tool with its grooved side facing opposite the slider.
  2. Make sure the back-up rings is seated in the cylinder and seal.
  1. Grease the steering rack and install the special tool.
