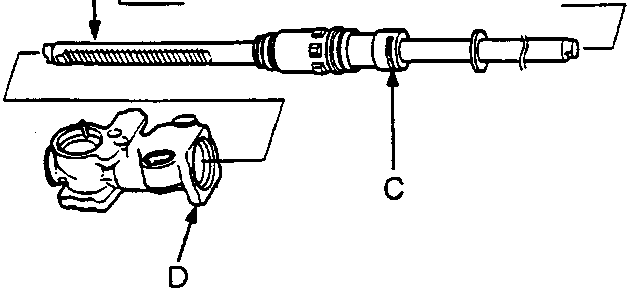

A Steering Rack B Cylinder C Seal Retainer D Gear Housing 16. Place the gear housing on the work bench and insert the seal retainer and steering rack into the gear housing. 17. Coat the inside surface of the cylinder with power steering fluid, slide it over the rack and into the gear housing; press it into the housing until it seats.

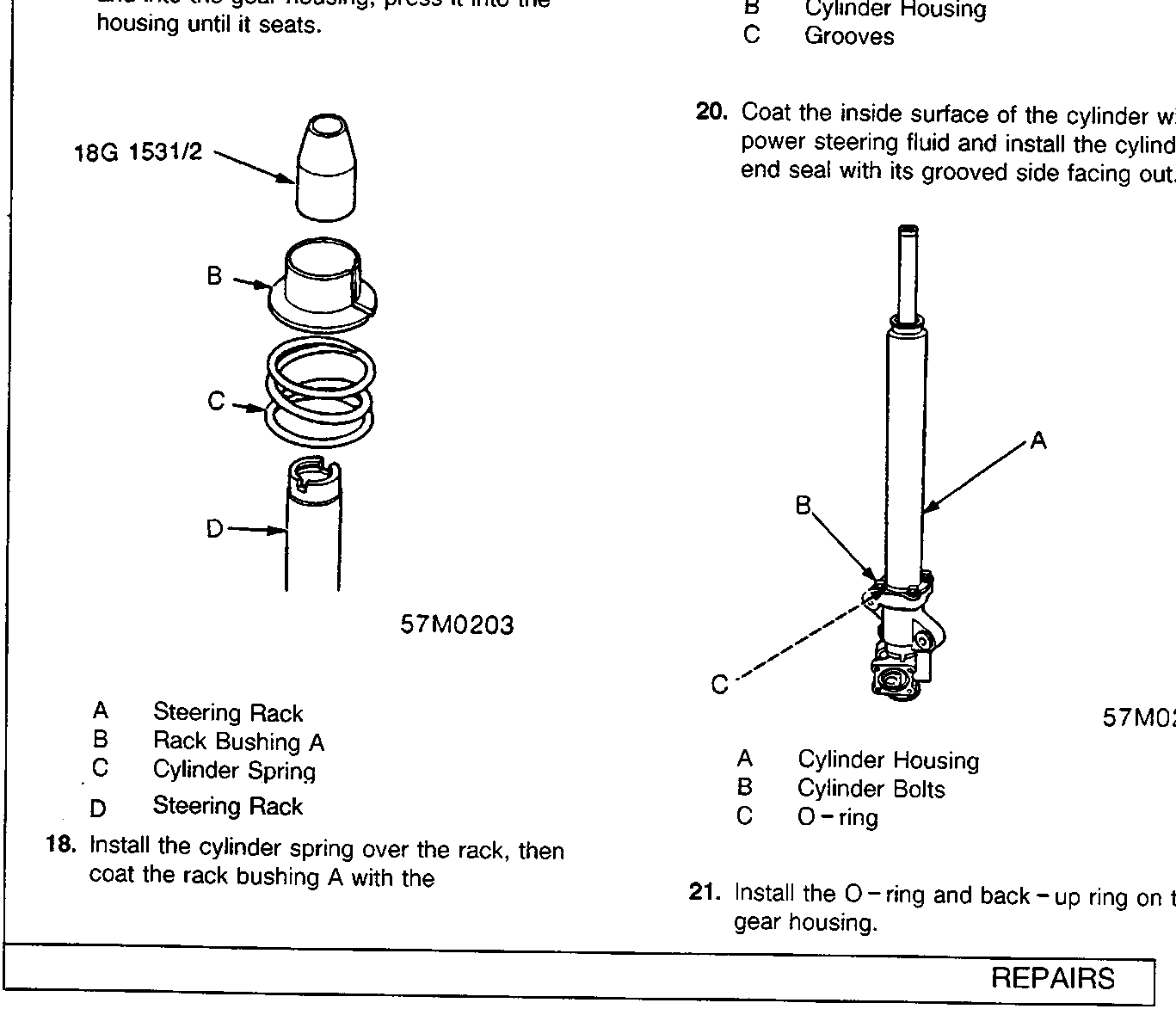

A Steering Rack B Rack Bushing A C Cylinder Spring D Steering Rack 18. Install the cylinder spring over the rack, then coat the rack bushing A with the recommended power steering fluid and install it on the spring. 19. Fit use the special tool. Coat the tool with grease.

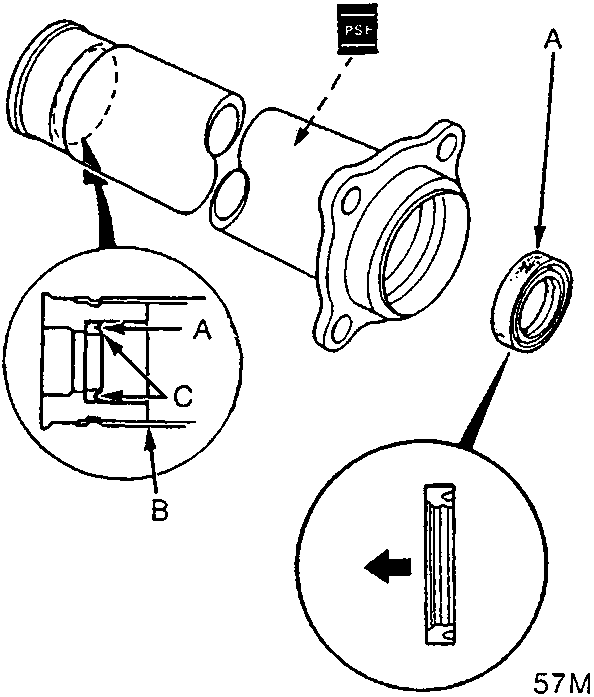

A Cylinder End Seal B Cylinder Housing C Grooves 20. Coat the inside surface of the cylinder with power steering fluid and install the cylinder end seal with its grooved side facing out.

A Cylinder Housing B Cylinder Bolts C O-ring 21. Install the O-ring and back-up ring on the gear housing.
