12 · Steering & suspension

Original page (page 3 of 6)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SteeringOriginal page · page 3 of 6

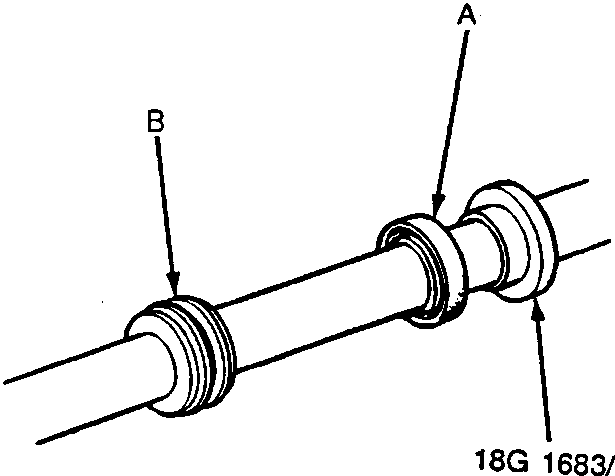

Diagram showing a steering rack with labels A pointing to Cylinder End Seal and B pointing to Rack Bushing B

57M0198

A Cylinder End Seal
B Rack Bushing B

  1. Separate the special tool from the cylinder end seal and remove the tool from the rack.

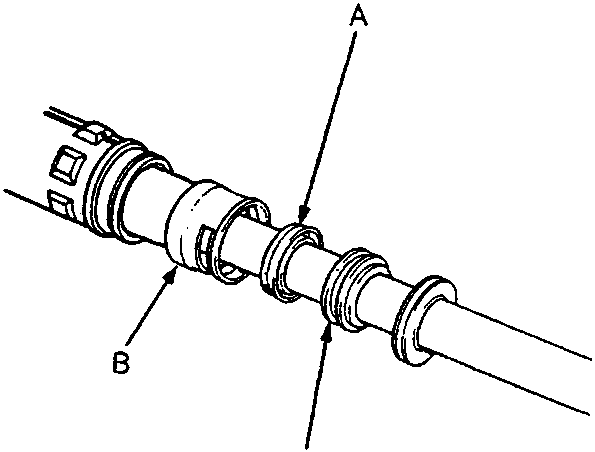

Diagram showing a steering rack assembly with labels A pointing to Cylinder End Seal, B pointing to Seal Retainer, and C pointing to Rack Bushing B

57M0199

A Cylinder End Seal
B Seal Retainer
C Rack Bushing B

  1. Fit the seal retainer on the steering rack.

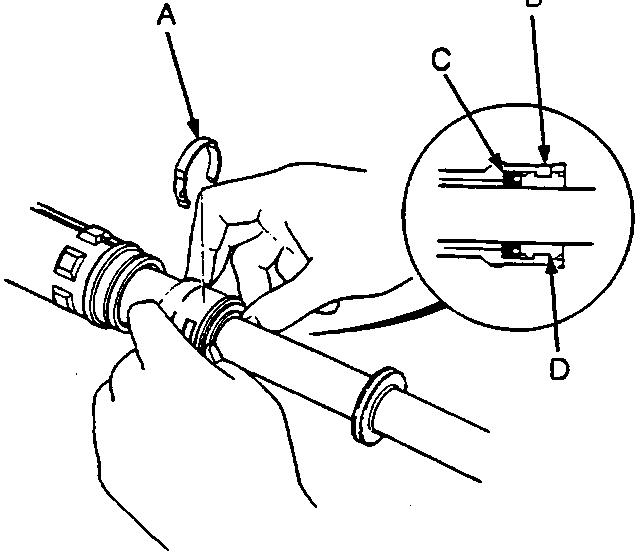

Diagram showing hands fitting components onto a steering rack with inset detail. Labels: A Bushing Stopper Ring, B Seal Retainer, C Rack Bushing B, D Rack Bushing B

57M0200

A Bushing Stopper Ring
B Seal Retainer
C Rack Bushing B
D Rack Bushing B

  1. Push the rack bushing B toward the seal retainer by hand until the cylinder end seal is seated in the retainer. Fit the bushing stopper ring in the groove of the seal retainer securely.

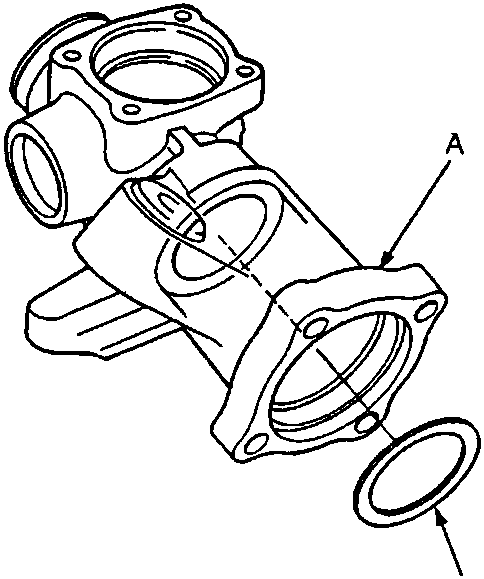

Diagram showing a gear housing with a retainer washer being fitted. Labels: A Gear Housing, B Retainer Washer

57M0201

A Gear Housing
B Retainer Washer

  1. Install the retainer washer on the gear housing.
