Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition12 · Steering
12 · Steering & suspension

Original page (page 6 of 6)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SteeringOriginal page · page 6 of 6

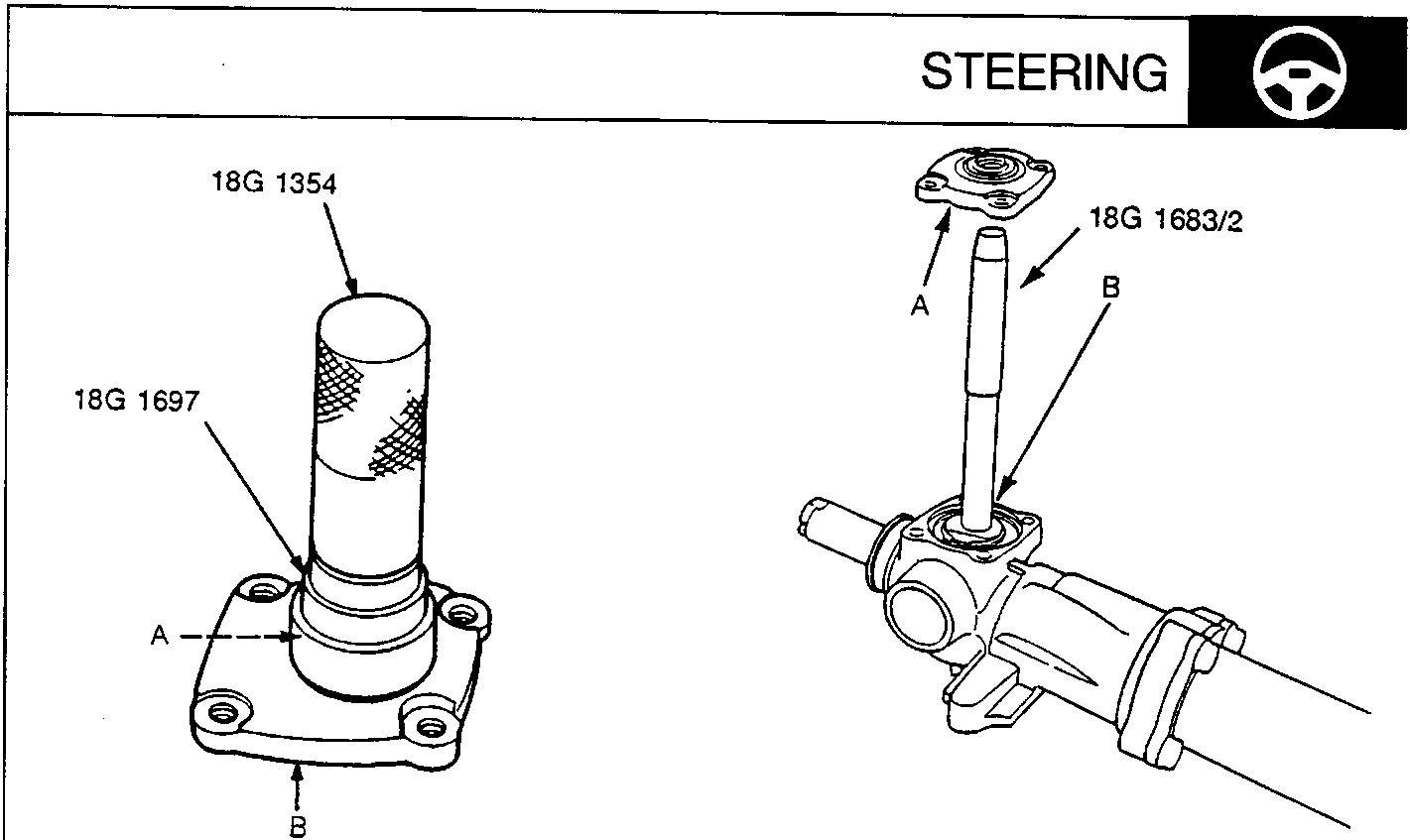

Diagram showing special tools 18G 1354 and 18G 1697 for steering pinion seal installation, and tool 18G 1683/2 being used on the gear housing cap and steering pinion. Labels A and B identify components.

57M0209

  • A Steering Pinion Seal
  • B Gear Housing Cap

57M0211

  • A Gear Housing Cap
  • B Steering Pinion
  1. Grease the steering pinion seal, and install it on the gear housing cap using the special tools.
  2. Grease the new O-ring and install it in the groove in the gear housing cap.

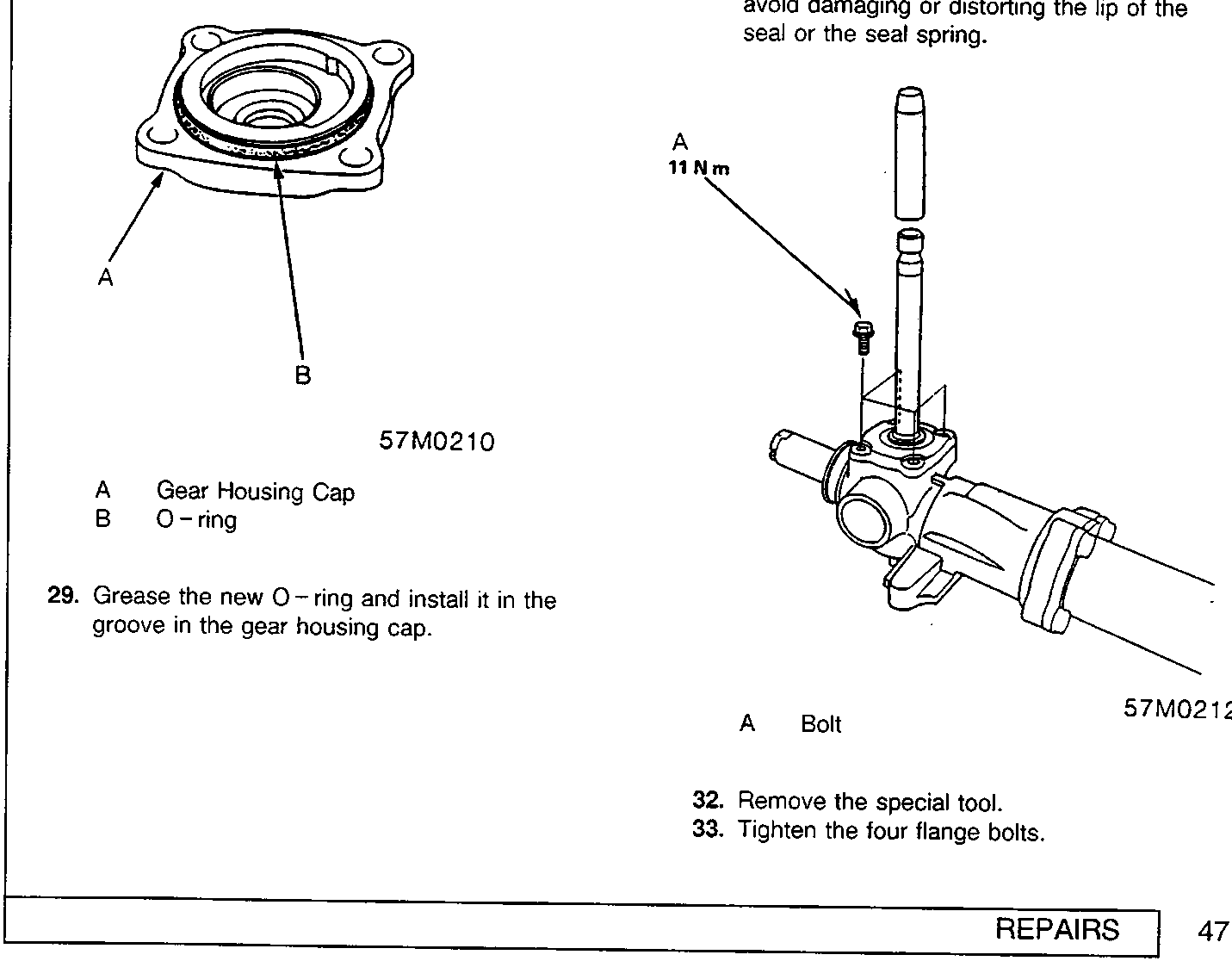

Diagram showing gear housing cap with O-ring installed in its groove (A: Gear Housing Cap, B: O-ring), and a bolt being tightened to 11 Nm on the assembly.

57M0210

  • A Gear Housing Cap
  • B O-ring
  1. Install the special tool onto the steering pinion and coat the special tool with grease.
  2. Install the gear housing cap carefully to avoid damaging or distorting the lip of the seal or the seal spring.

11 Nm

  • A Bolt

57M0212

  1. Remove the special tool.
  2. Tighten the four flange bolts.
