Automatic gearbox - JF403EAutomatic gearbox · page 2 of 9
Diagram

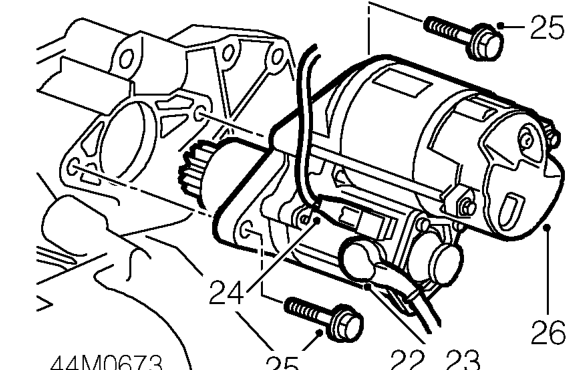

  1. Release cover from starter solenoid battery lead.
  2. Remove terminal nut and disconnect lead.
  3. Disconnect solenoid Lucar.
  4. Remove 2 bolts securing starter motor.
  5. Remove starter motor.
Remove starter motor.

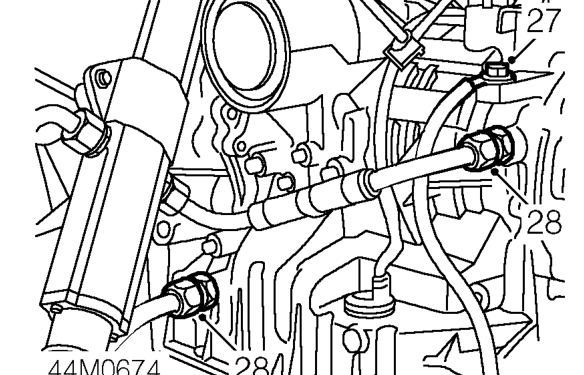

  1. Remove bolt securing earth cable to gearbox and move cable aside.
  2. Disconnect 2 oil cooler unions.
  3. Remove and discard 2 oil cooler union ’O’ rings.

CAUTION: Plug the connections.

Remove and discard 2 oil cooler union ’O’ rings.

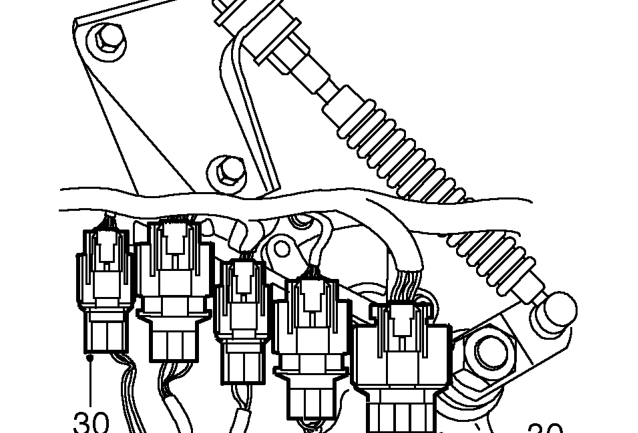

  1. Release 5 multiplugs from bracket on gearbox. Disconnect multiplugs.
Release 5 multiplugs from bracket on gearbox. Disconnect multiplugs.

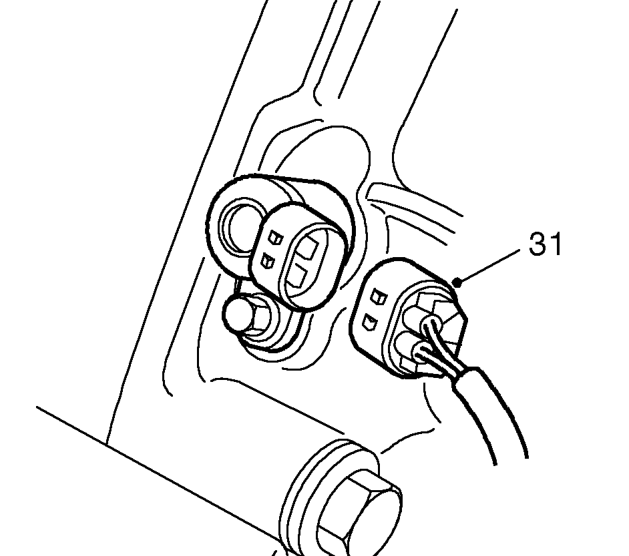

  1. Disconnect crankshaft position sensor multiplug.
