Rover 800 Workshop Manual (1996-1999)17 · Automatic gearbox - JF403E
17 · Transmission

Automatic gearbox (page 3 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Automatic gearbox - JF403EAutomatic gearbox · page 3 of 9
Diagram

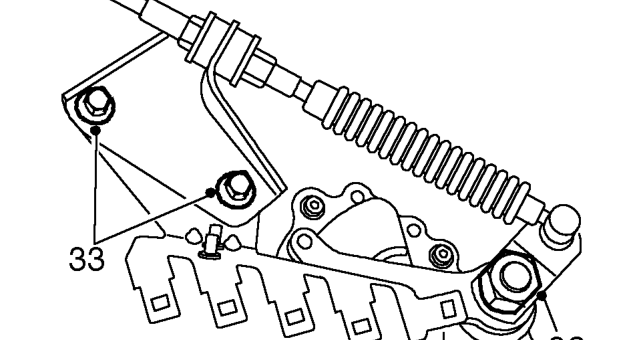

  1. Remove nut securing selector lever to selector shaft and release lever from shaft.
  2. Remove 2 bolts securing selector cable bracket to gearbox. Move bracket clear of gearbox.
Remove 2 bolts securing selector cable bracket to gearbox. Move bracket clear of gearbox.

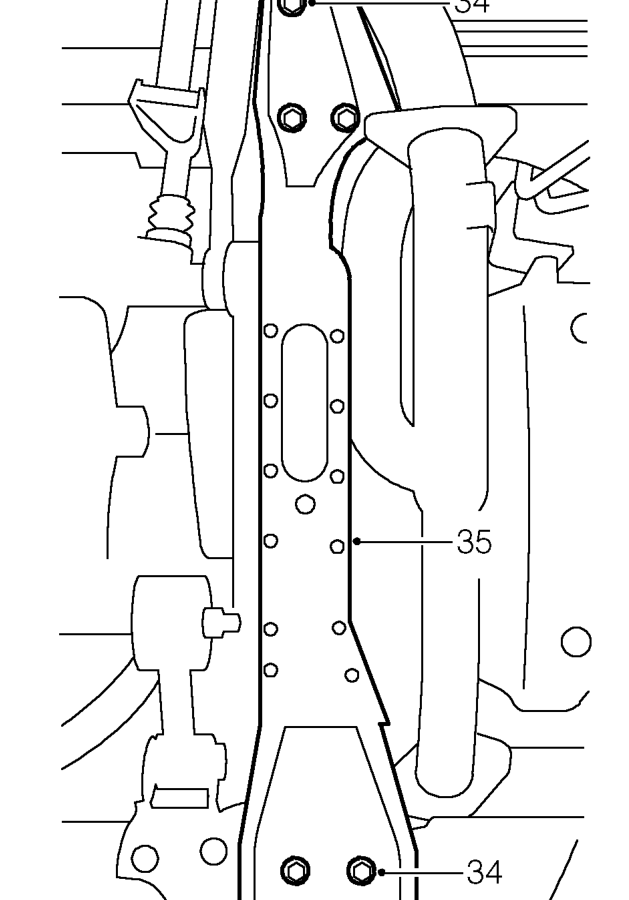

  1. Remove 8 bolts securing centre beam to front and rear cross-members.
  2. Remove centre beam.
Remove centre beam.

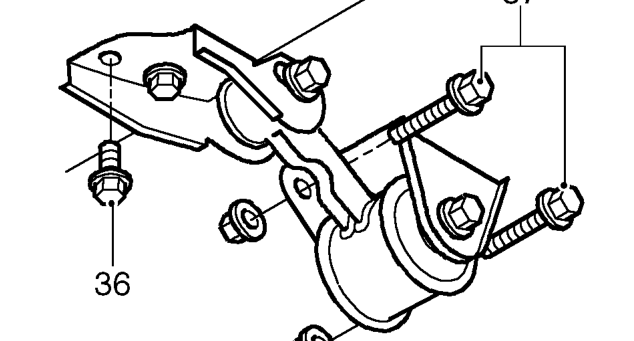

  1. Remove 3 bolts securing front steady bar bracket to front crossmember.
  2. Remove 2 bolts securing steady bar bracket to gearbox.
  3. Remove steady bar and bracket assembly.
Remove steady bar and bracket assembly.

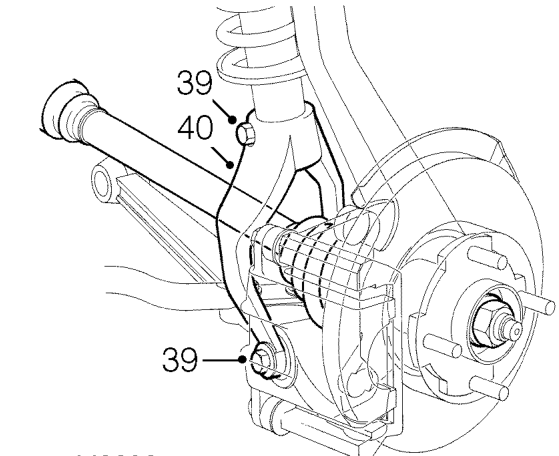

  1. Remove nut and bolt securing RH suspension yoke to lower arm and nut and bolt securing yoke to to damper.
  2. Release and remove yoke.
