Rover 800 Workshop Manual (1996-1999)17 · Automatic gearbox - JF403E
17 · Transmission

Automatic gearbox (page 5 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Automatic gearbox - JF403EAutomatic gearbox · page 5 of 9
Diagram

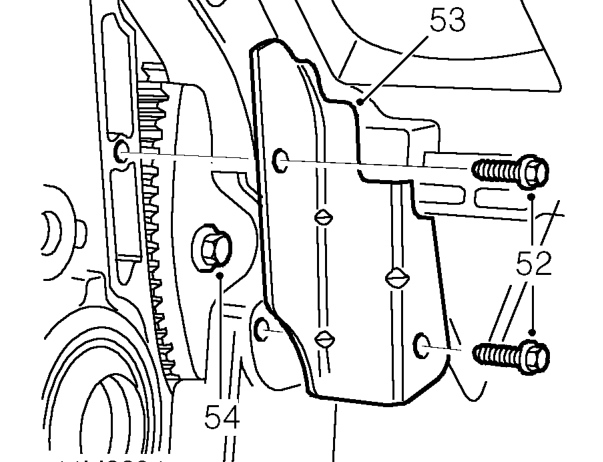

  1. Remove 2 bolts securing drive plate access cover.
  2. Remove access cover.
  3. Remove 6 bolts securing drive plate to converter.
  4. Disconnect exhaust front pipe mounting rubber.
Disconnect exhaust front pipe mounting rubber.

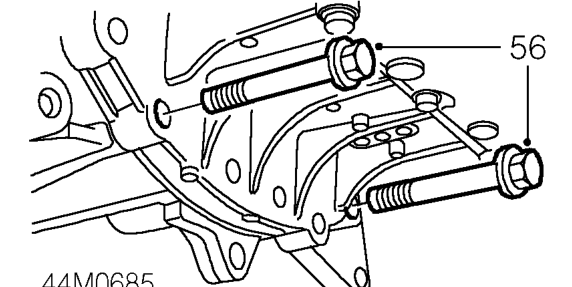

  1. Remove 2 lower bolts securing gearbox.
Remove 2 lower bolts securing gearbox.

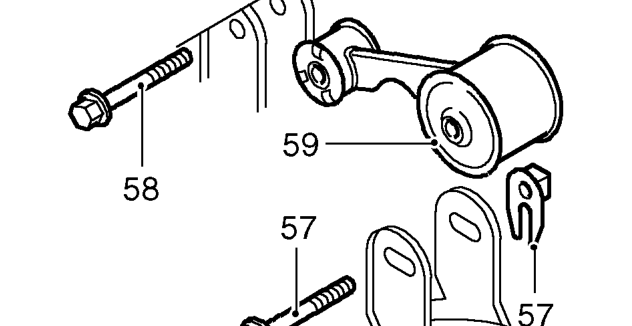

  1. Remove bolt securing steady bar to bracket and collect special washer.
  2. Remove bolt securing steady bar to body.
  3. Remove steady bar.
Remove steady bar.

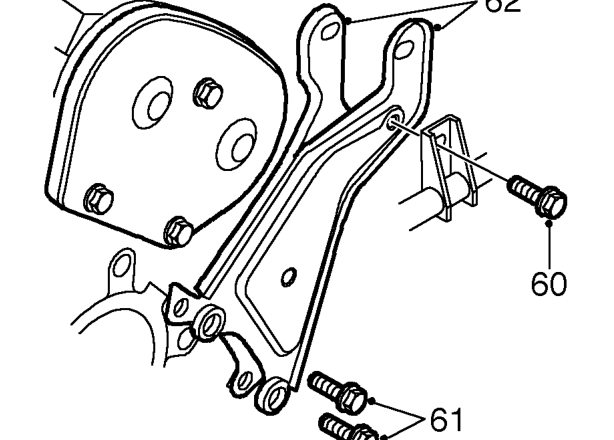

  1. Remove bolt securing coolant pipe to steady bar bracket.
  2. Remove 2 bolts securing steady bar bracket to gearbox.
  3. Release and remove brackets.
