Rover 800 Workshop Manual (1996-1999)17 · Automatic gearbox - JF403E
17 · Transmission

Automatic gearbox (page 6 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Automatic gearbox - JF403EAutomatic gearbox · page 6 of 9
Diagram

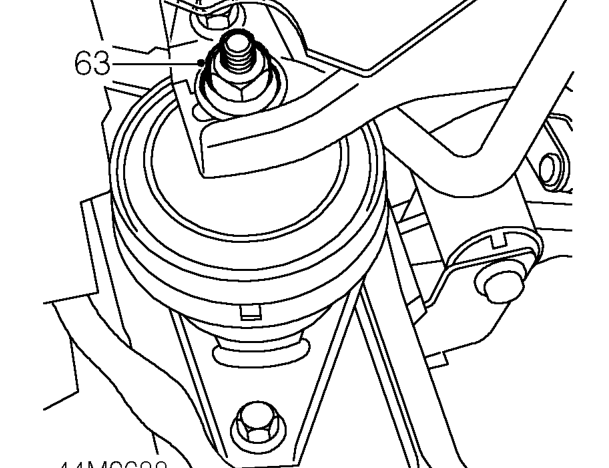

  1. Remove top nut from front engine mounting.
  2. Position trolley jack to support engine.

CAUTION: Use a block of wood or hard rubber pad to protect engine.

Position trolley jack to support engine.

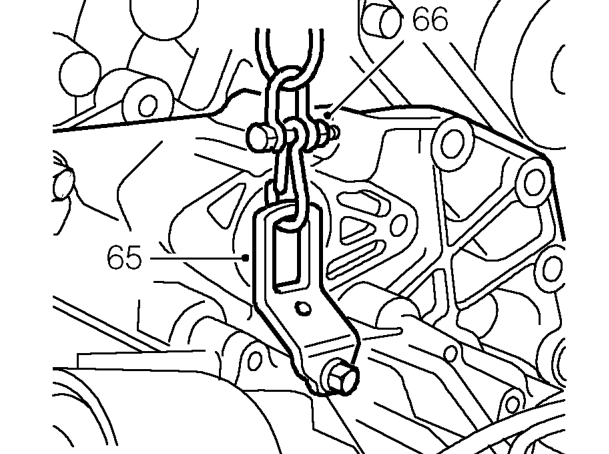

  1. Remove bolt from gearbox casing, fit suitable lifting bracket, refit and tighten bolt.
  2. Connect lifting chains to bracket.
Connect lifting chains to bracket.

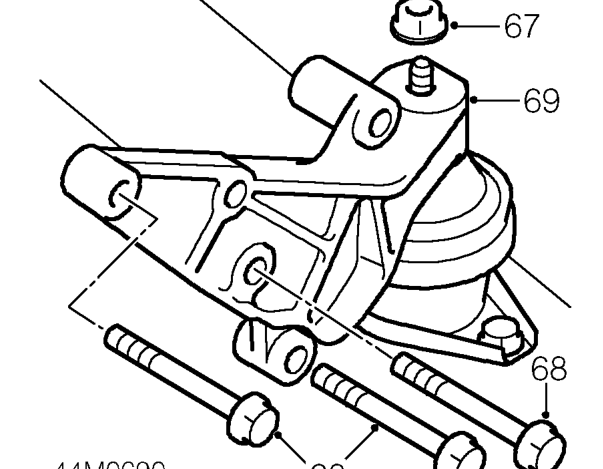

  1. Remove top nut from rear engine mounting.
  2. Remove 3 bolts securing engine rear mounting bracket to gearbox.
  3. Remove bracket.
Remove bracket.

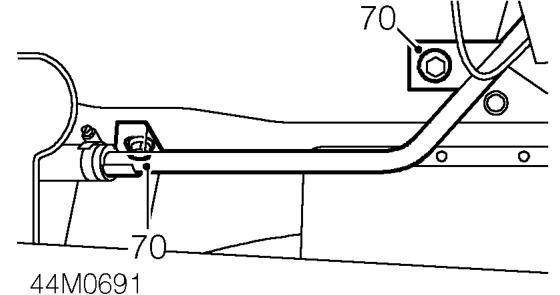

  1. Remove 2 bolts securing coolant pipe to front crossmember.
