Automatic gearbox - JF403EAutomatic gearbox · page 7 of 9

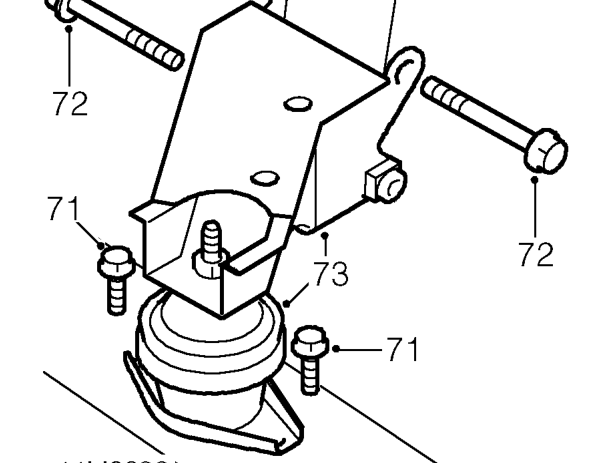

Diagram
  1. Move coolant pipe aside and remove 2 bolts securing engine front mounting to crossmember.
  2. Remove 2 bolts securing engine front mounting bracket to gearbox.
  3. Release and remove mounting and mounting bracket assembly.
  4. Remove gearbox dipstick.

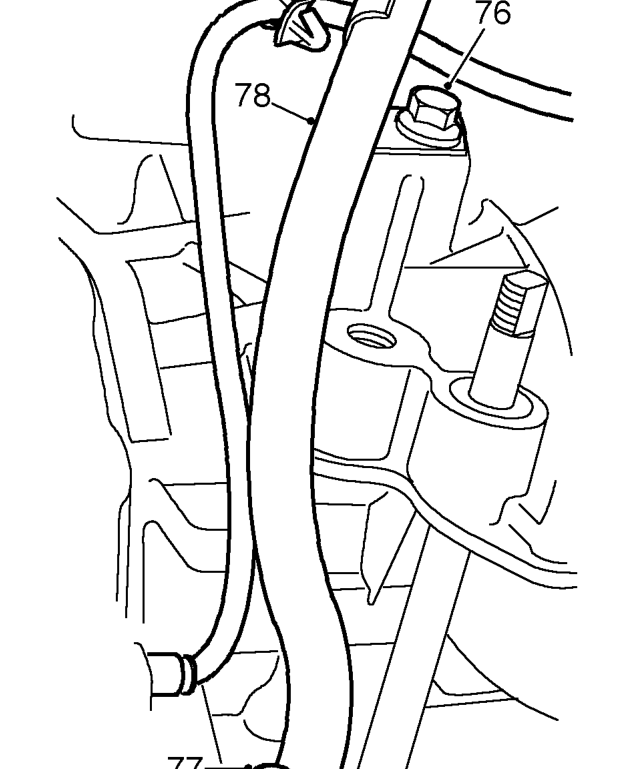

Remove gearbox dipstick.
  1. Release harness clip from dipstick tube bracket.
  2. Remove bolt securing dipstick tube bracket.
  3. Remove bolt securing dipstick tube.
  4. Lower engine and gearbox slightly and remove dipstick tube. Remove ’O’ ring from dipstick tube and discard.

CAUTION: Plug gearbox.
