Rover 800 Workshop Manual (1996-1999)21 · Restraint systems
21 · Body & interior

Precautions (page 2 of 3)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Precautions
Restraint systemsPrecautions · page 2 of 3

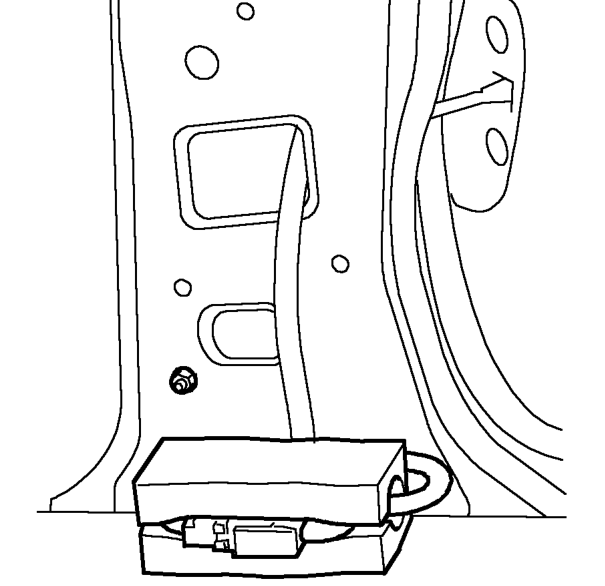

Diagram

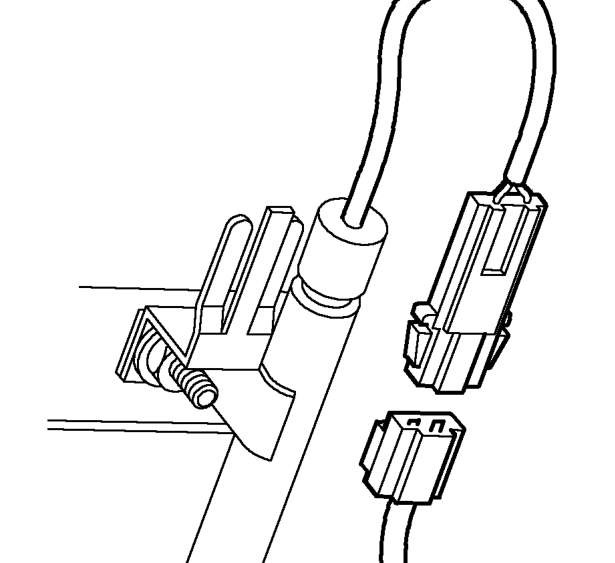

Front seat belt pre-tensioner - 4/5 Door

Front seat belt pre-tensioner - 4/5 Door

Front seat belt pre-tensioner - Coupe

Front seat belt pre-tensioner - Coupe

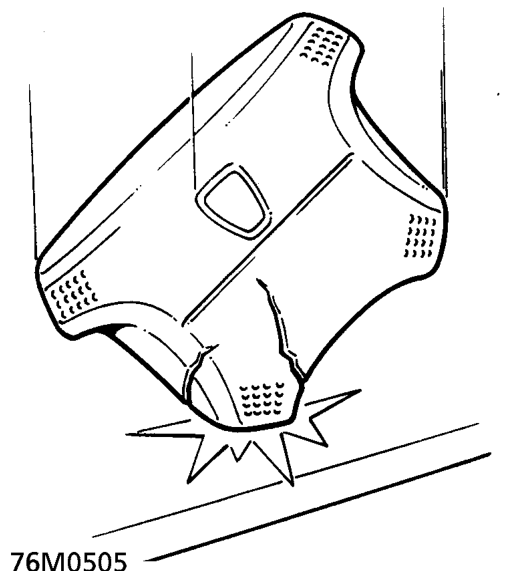

  • Carefully inspect any SRS part before installing. Do not install any part that shows signs of being dropped or improperly handled, such as dents, cracks or deformation. The SRS control and diagnostic unit is a shock sensitive device and must be handled with extreme care.
  • Do not try to dismantle an airbag module or seat belt pre-tensioner. There are NO separately serviceable parts. Once an airbag or seat belt pre-tensioner has been deployed, it cannot be repaired or reused.
  • Do not install used SRS parts from another vehicle. When repairing, use only new SRS parts.
