Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Refit (page 2 of 6)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Hood
BodyRefit · page 2 of 6

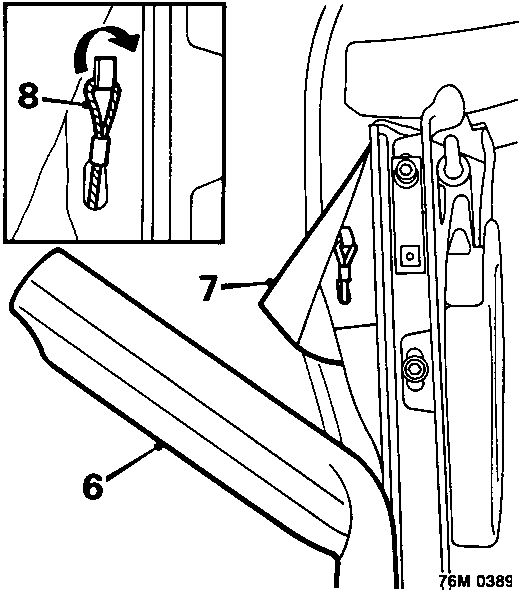

Diagram showing release of cantrail seals from hood frame, with callout numbers 6, 7, and 8 indicating specific components and actions.
  1. Release forward 150mm of cantrail seals from hood frame.
  2. Release outer covering from adhesive on underside of header rail, taking care not to rip interlayer fabric especially at sides of header rail.
  3. Bend location tang up by minimum amount necessary to release cantrail tensioning cables from header rail.

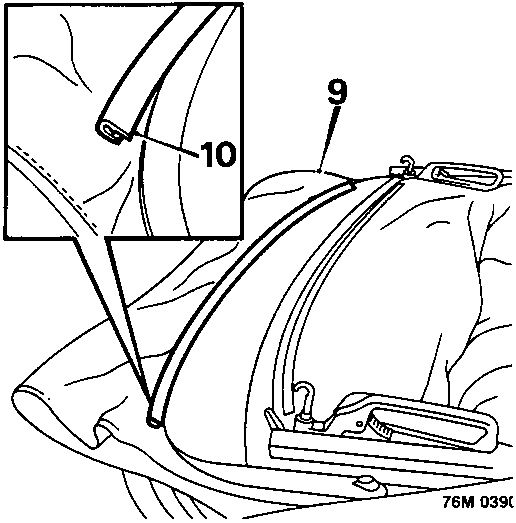

Diagram showing folding of outer covering away from header rail, with callout numbers 9 and 10 indicating the beading strip and rail.
  1. Fold outer covering away from header rail.
  2. If plastic beading strip becomes detached from header rail, refit strip with longest lip on underside, ensuring it is central to header.
  3. Raise hood partially until forward half of hood is vertical.
Diagram of power hood mechanism showing chocks placed in both sides of the hood mechanism, with callout number 12.
  1. Power hood: Place chocks in both sides of hood mechanism.

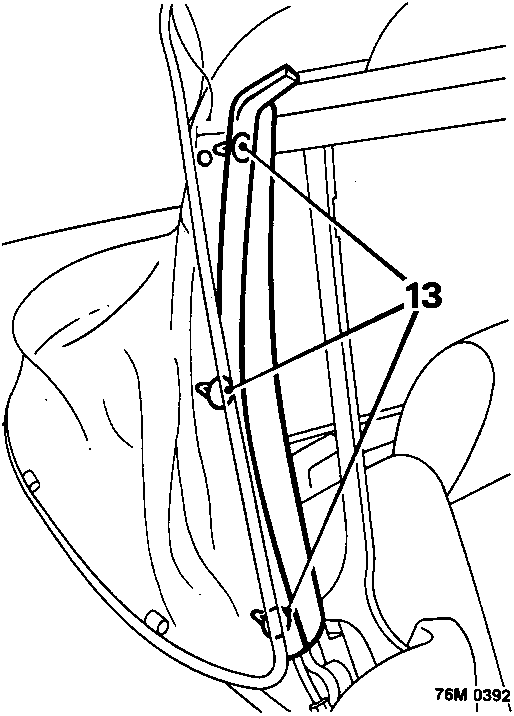

Diagram showing release of trim studs securing 'D' post seal, with callout number 13 pointing to the studs.
  1. Release 3 trim studs securing each 'D' post seal and remove seals from hood frame.
