Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Refit (page 3 of 6)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Hood
BodyRefit · page 3 of 6

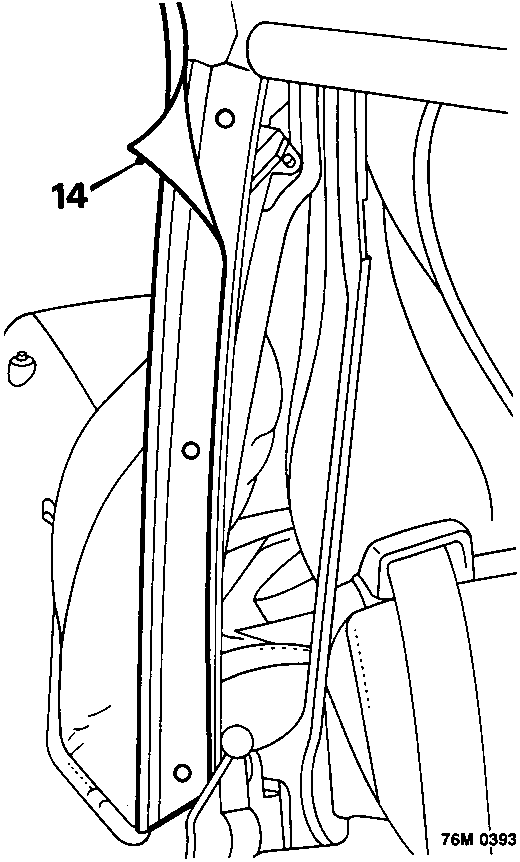

Diagram showing release of outer covering from adhesive on 'D' post brackets, callout 14
  1. Release outer covering from adhesive on 'D' post brackets.

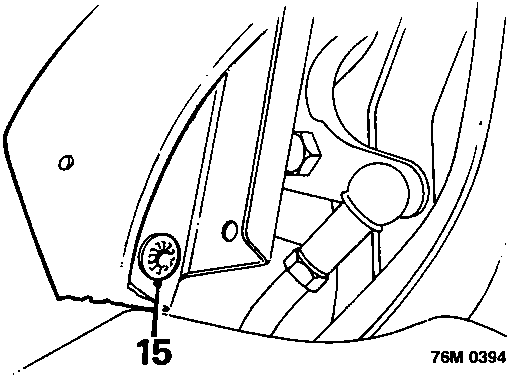

Diagram showing release of 'rivet' plates from base of 'D' post bracket and collection of washers, callout 15
  1. Release 'rivet' plates from base of each 'D' post bracket and collect washers.

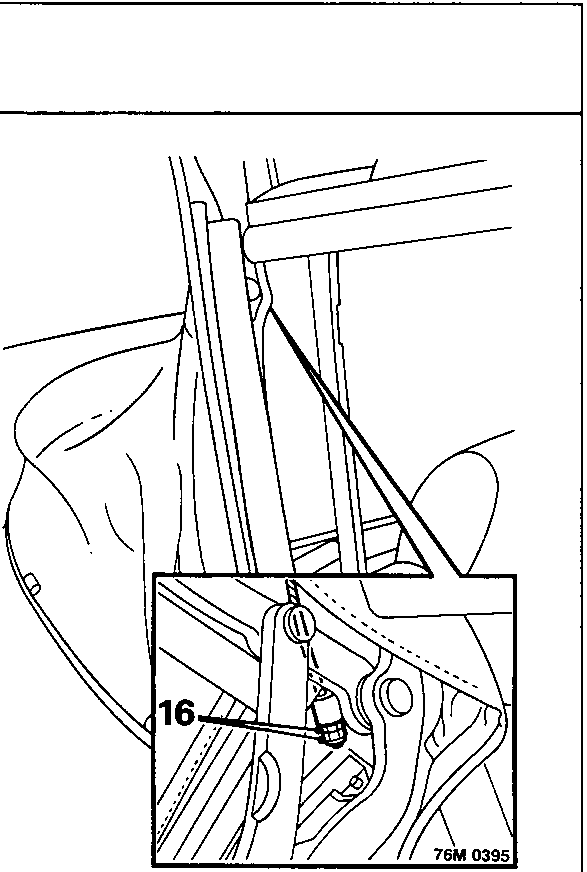

Diagram showing removal of locknut and adjustment nut from cantrail tensioning cable and release of cables from hood frame, callout 16
  1. Remove locknut and adjustment nut from each cantrail tensioning cable and release cables from hood frame.

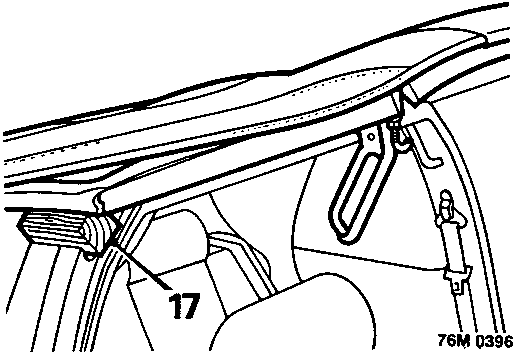

Diagram showing hood raised onto 50mm blocks placed on 'B' posts, callout 17
  1. Raise hood onto 50mm blocks placed on 'B' posts.
