Hood
BodyRefit · page 4 of 6

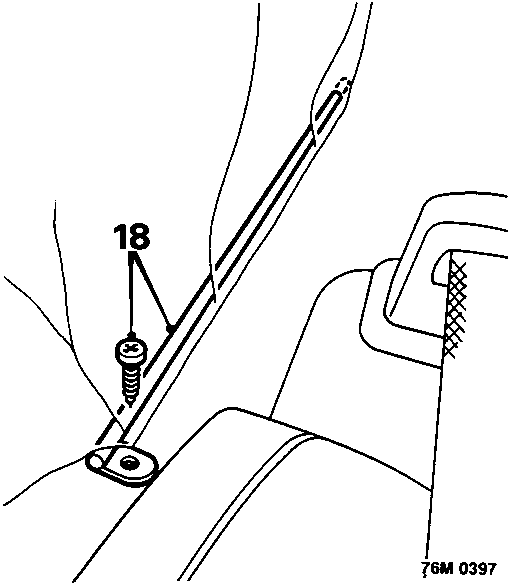

Diagram showing removal of headlining tension rod screw, callout 18.
  1. Remove headlining tension rod screws, at either side of rear shelf, and remove tension rods.

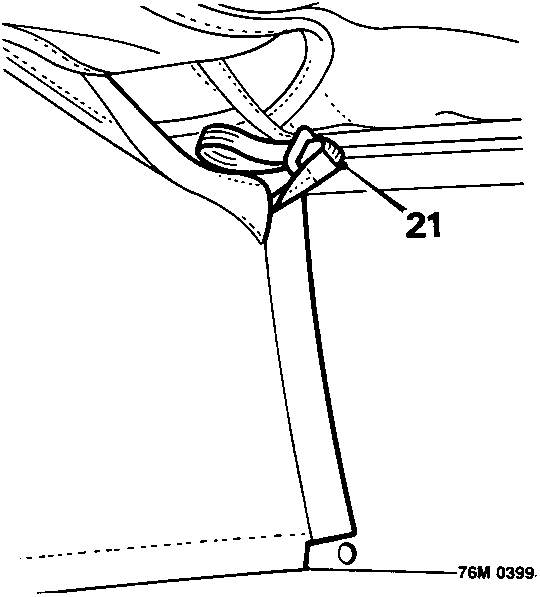

Diagram showing release of straps at rear of headlining from hooks in lower rail of backlight, callout 21.
  1. Release straps at rear of headlining from hooks in lower rail of backlight.

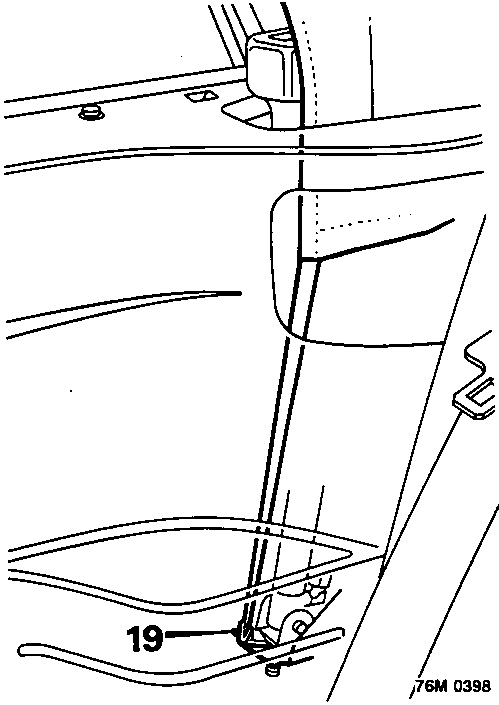

Diagram showing disengagement of headlining strap from base of hood strut, callout 19.
  1. Reach between hood strut and rear quarter trim panel to disengage headlining strap from base of hood strut.
  2. Remove wire clip from headlining strap.

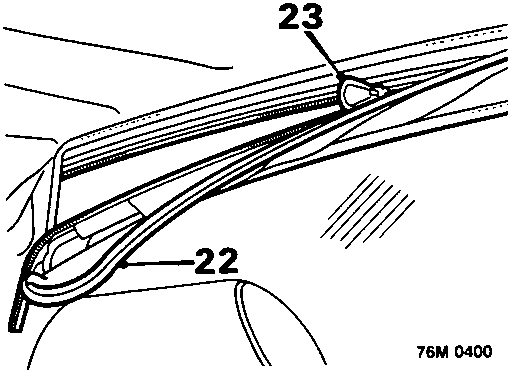

Diagram showing Velcro and zip fastener on top of backlight, callouts 22 and 23.
  1. Peel Velcro away from top of backlight to reveal zip fastener.
  2. Unfasten zip and lay backlight on rear shelf.

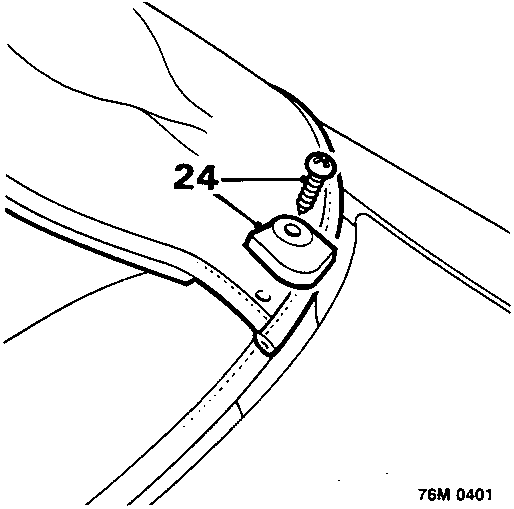

Diagram showing removal of screws for hood rear quarter corner finishers, callout 24.
  1. Remove screws and remove hood rear quarter corner finishers.
