BONNET

Service repair no - 76.16.01/99

Remove

Refit

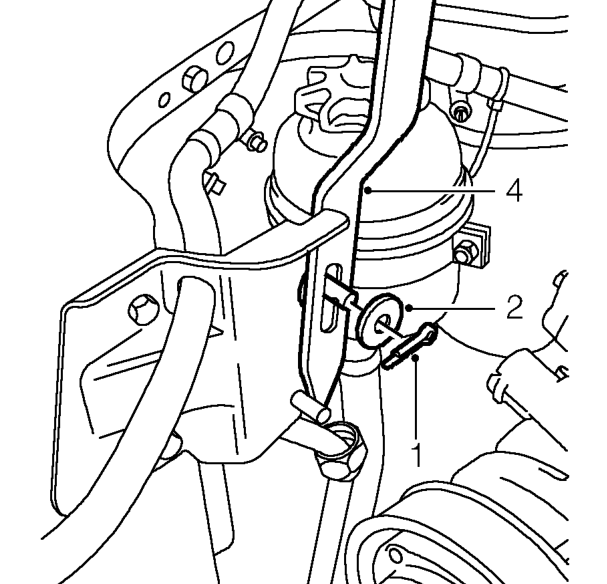

1. Remove split [cotter] pin from bonnet prop lower pivot.
2. Remove washer and anti-rattle washer from pivot.
3. Position suitable chock to support bonnet in a 10. Align hinges to bonnet markings. position to gain access to hinge nuts. 11. Tighten hinge retaining screws.
4. Release bonnet prop from pivot, fold prop up into 12. Raise bonnet from chock and connect prop to bonnet and rest bonnet onto chock.
13. Fit anti-rattle and plain washers to pivot and
14. Release prop and close bonnet to check

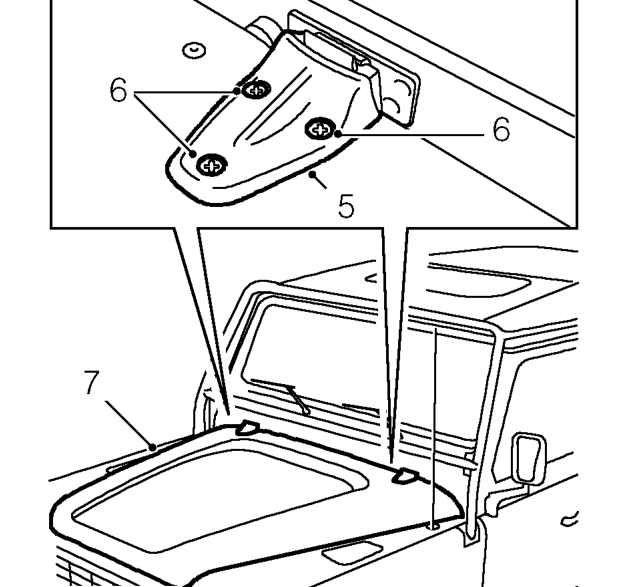

5. Mark outline of hinge on bonnet.
6. Remove 6 nuts and screws securing bonnet to hinges.
7. With assistance, remove bonnet.
8. With assistance, position bonnet to hinges.
9. With assistance, fit screws through hinges and bonnet and fit washers and nuts to screws.

pivot.

secure with split [cotter] pin.

alignment and operation.
