Door glass - front door
- Make
- Land Rover
- Model
- Defender 90 Workshop Manual (NAS)
- Section
- Repair › Door glass - front door
Chassis and bodyDoor glass - front door

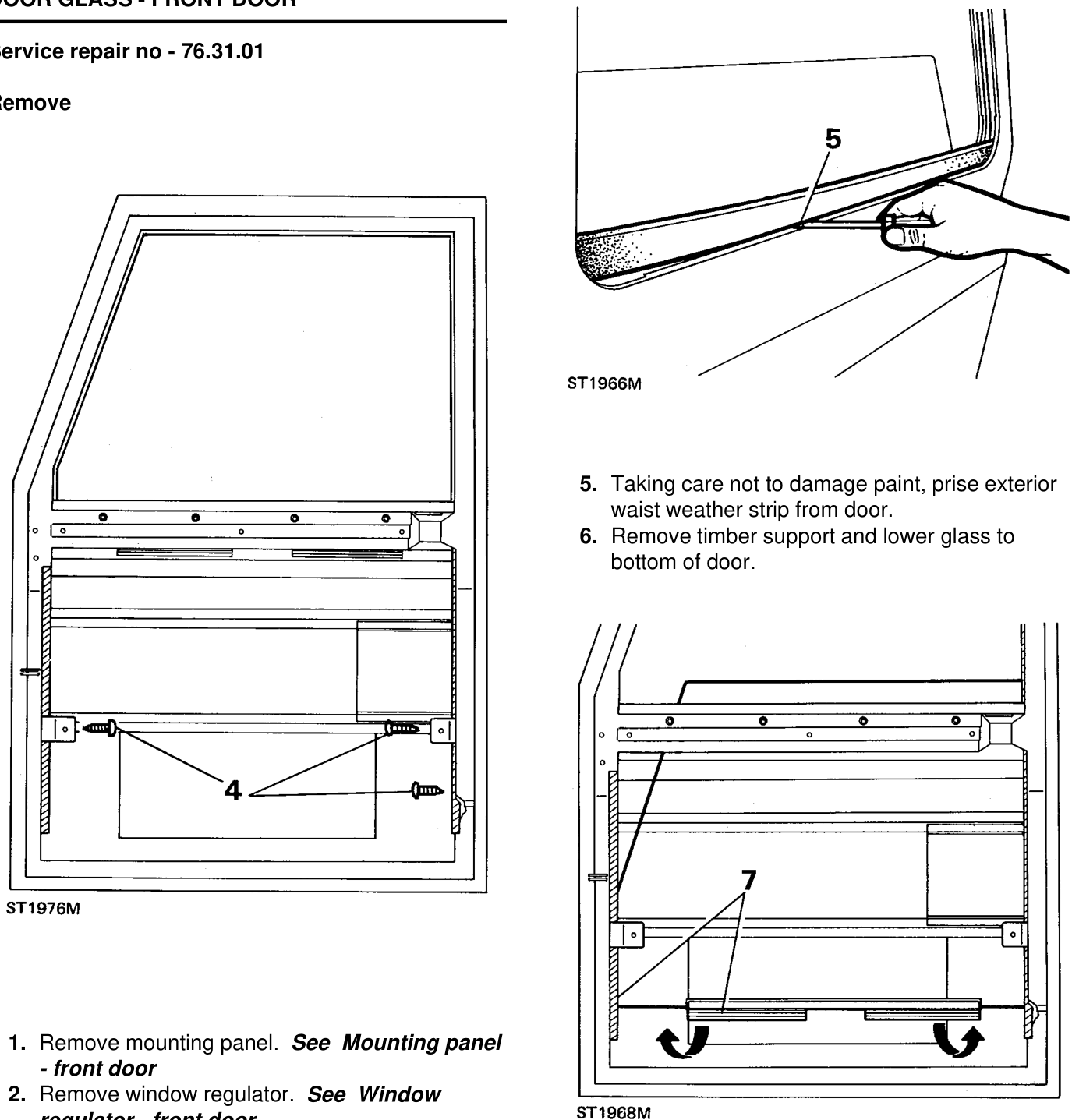

DOOR GLASS - FRONT DOOR
Service repair no - 76.31.01
Remove
- Taking care not to damage paint, prise exterior waist weather strip from door.
- Remove timber support and lower glass to bottom of door.
- Remove mounting panel. See Mounting panel - front door
- Remove window regulator. See Window regulator - front door
- Push glass up to top of its travel and support with a suitable length of timber.
- Remove 2 self tapping screws securing window glass runner on latch side of door and single screw from hinge side.
- Ease runner from glass at hinge side of door, lift glass over bottom edge of door and withdraw.
