Locking barrel - front door

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Repair › Locking barrel - front door
Chassis and bodyLocking barrel - front door
Diagram

LOCKING BARREL - FRONT DOOR

Service repair no - 76.37.39

Remove

  1. Remove door trim See Trim casing - front and plastic sheet.

door

  1. Remove mounting panel See Mounting panel - front door

Refit

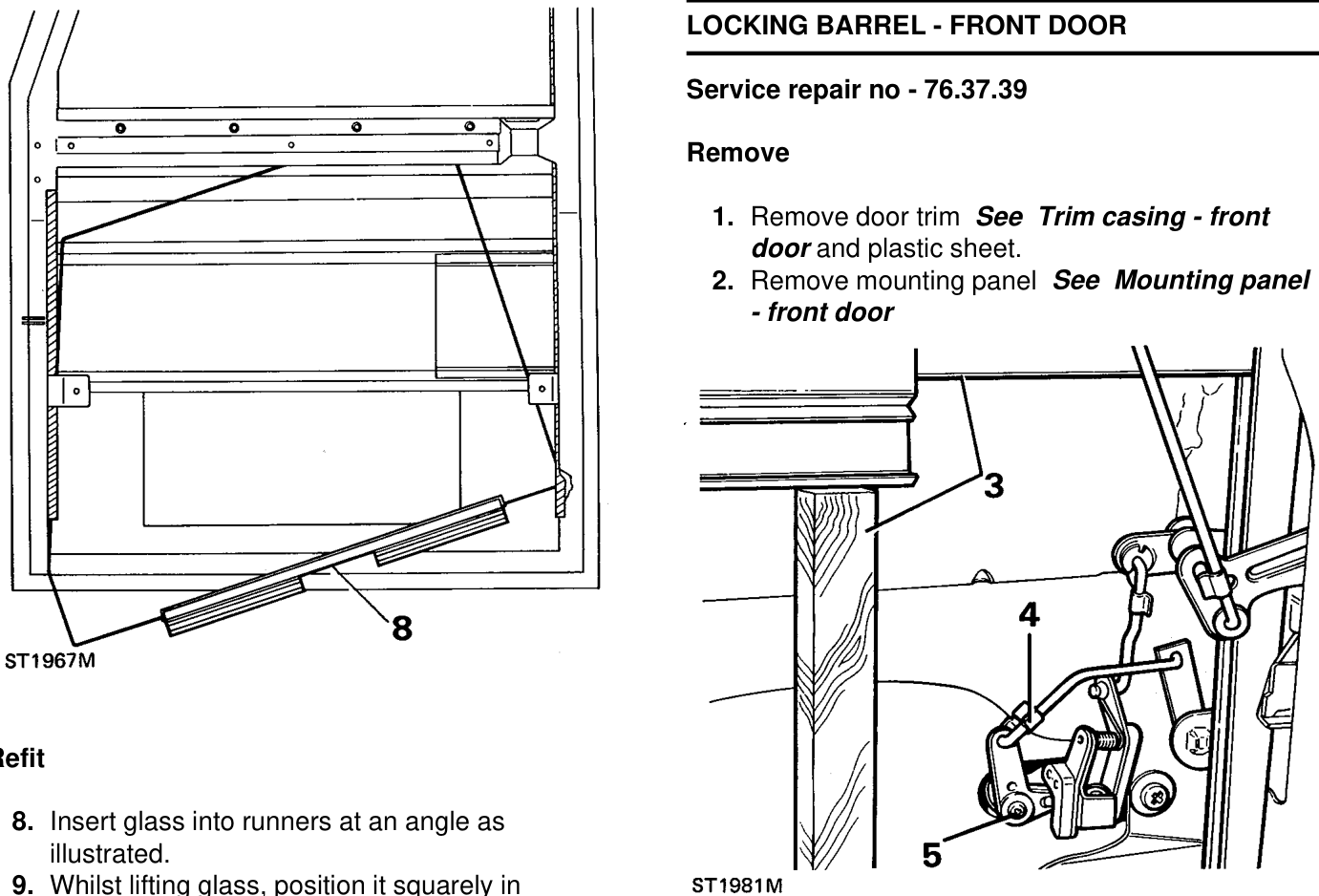

  1. Insert glass into runners at an angle as illustrated.
  2. Whilst lifting glass, position it squarely in runners, raise to top of travel and insert timber support.
  3. Secure hinge side runner with single screw ensuring that packing strip is in position.
  4. Locate packing strip and secure opposite runner with 2 screws. Ensure that all 3 screw heads are well below bottom of runners to prevent damage to glass.
  5. Locate regulator in window lift channels.
  6. Fit mounting panel See Mounting panel - front door
  7. Raise and support glass to gain access to latch mechanism.
  8. Release spring clip and disconnect rod from lock operating lever.
  9. Remove single screw and withdraw lock lever assembly.

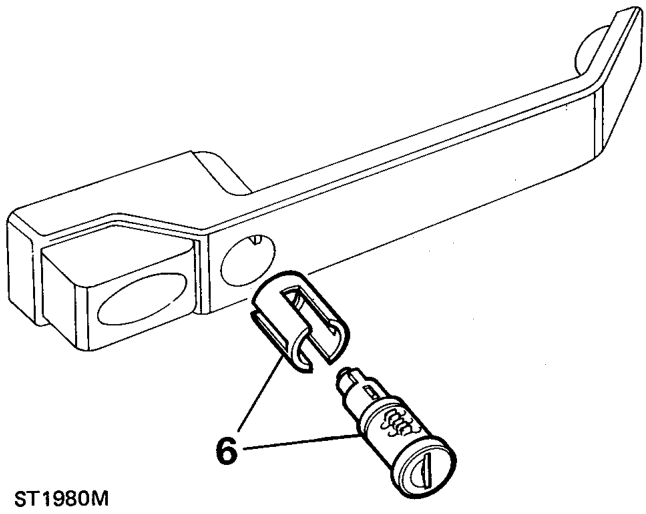

Door – Remove single screw and withdraw lock lever assembly.
  1. Withdraw lock barrel from exterior door handle complete with locking sleeve.
