Rear seat cushion

REAR SEAT CUSHION

Service repair no - 78.10.18/99

Remove

1. Release seat cushion stowage strap.
2. Remove 4 bolts and spring washers and lift seat cushion from pivot brackets.
3. Remove 4 bolts, plain washers, spring washers and nuts. Detach both pivot brackets from wheel arch.

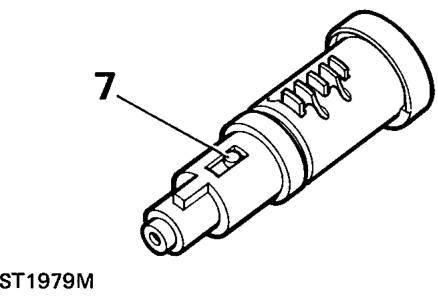

7. To remove barrel from plastic retaining sleeve, depess spring loaded button and withdraw sleeve.

Refit

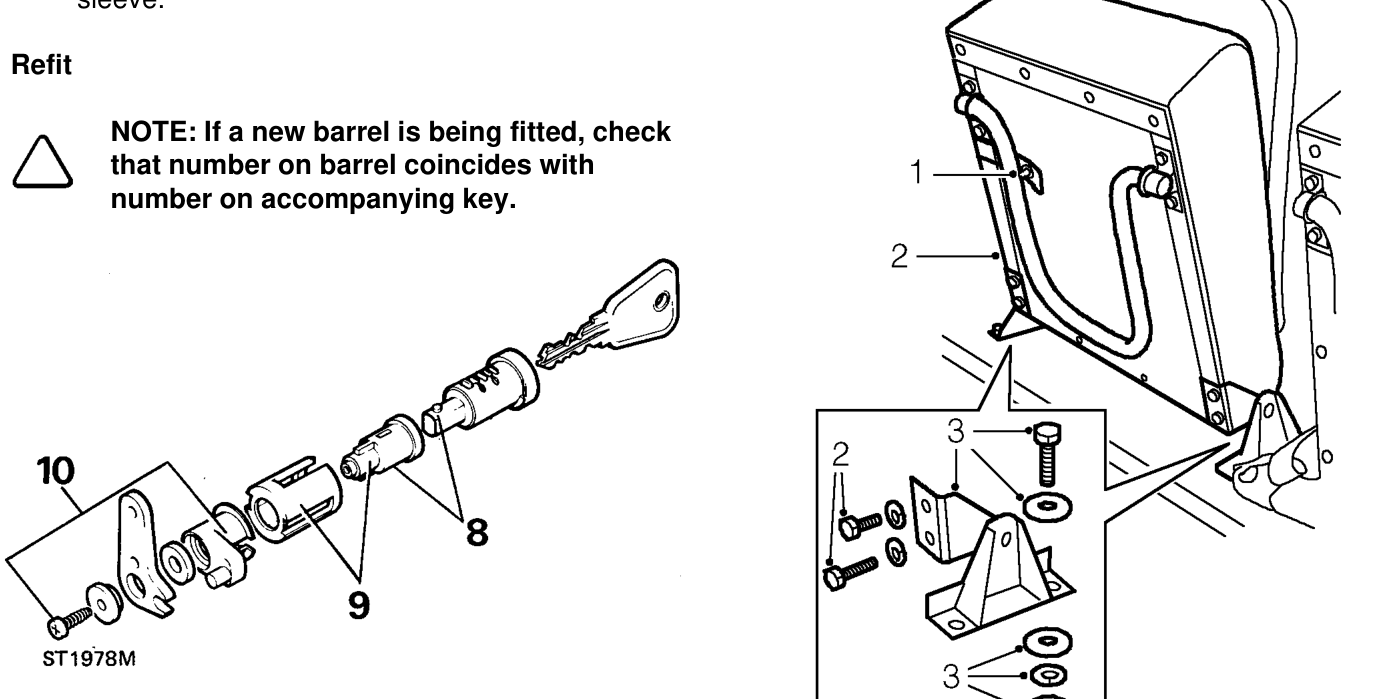

• NOTE: If a new barrel is being fitted, check
• that number on barrel coincides with
• number on accompanying key.

8. Push plastic retaining sleeve over barrel until spring loaded peg locks it into position.
9. Fit barrel and plastic sleeve assembly to locking

Refit

sleeve and insert into exterior handle reversing instruction 6.

10. Assemble lock lever components as illustrated and from inside of door panel, fit them to barrel assembly with single screw.
11. Connect operating rod to lock lever and secure with spring clip, reversing instruction 4.
12. Fit mounting panel. See Mounting panel - front door
4. Secure pivot brackets to wheel arch and tighten bolts to 10 Nm, 7 lbf ft.
5. Position seat cushion in pivot brackets and secure with 4 bolts and spring washers.
6. Fit stowage strap.
