Trim casing - front door
- Make
- Land Rover
- Model
- Defender 90 Workshop Manual (NAS)
- Section
- Repair › Trim casing - front door
Chassis and bodyTrim casing - front door

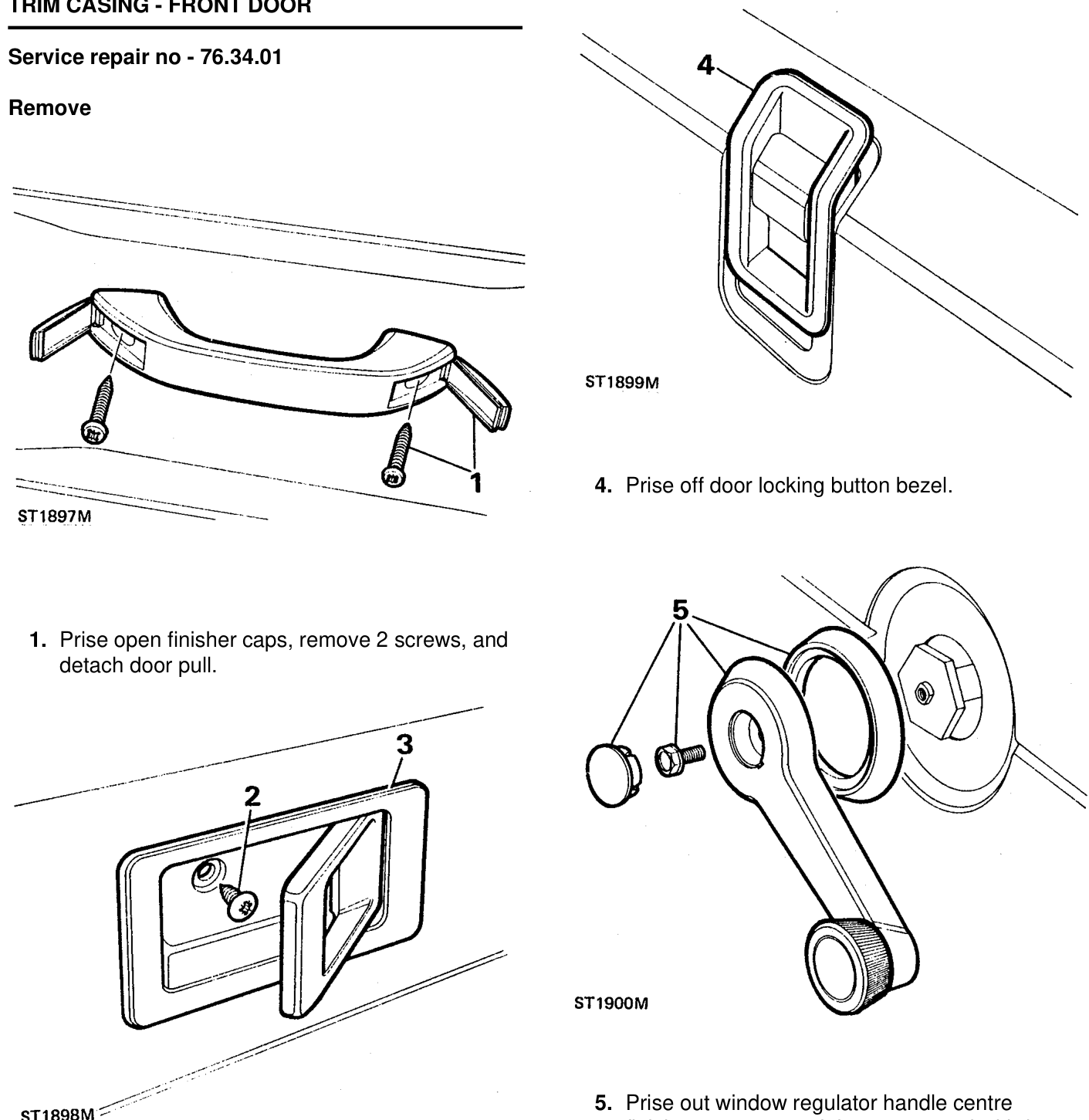

TRIM CASING - FRONT DOOR
Service repair no - 76.34.01
Remove
- Prise off door locking button bezel.
- Prise open finisher caps, remove 2 screws, and detach door pull.
- Prise out window regulator handle centre
- Remove single screw behind remote control lever.
- Prise off remote control lever bezel.
finisher, remove retaining screw, and withdraw handle and bezel.
- Using a screwdriver to release trim fasteners, carefully ease trim casing from door.
