Sun roof

SUN ROOF

Service repair no - 76.83.01

Remove

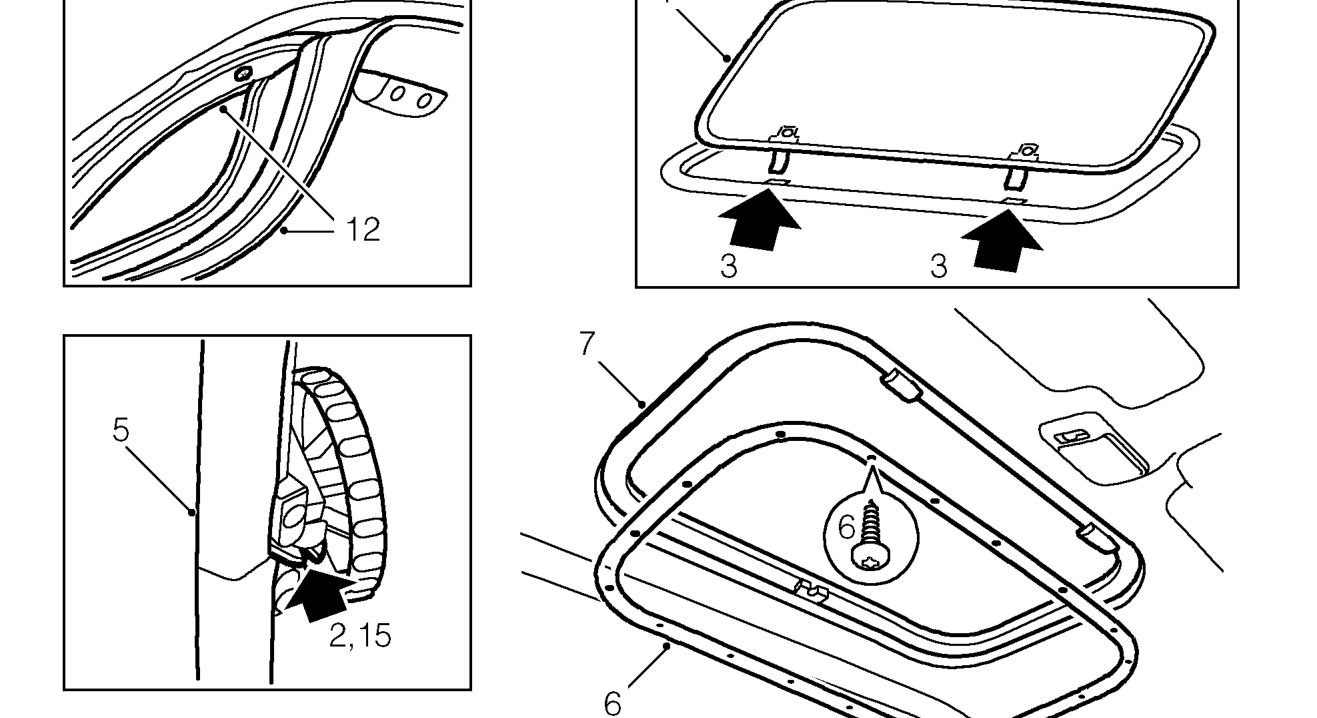

1. Open sun roof fully.
2. Disengage spring lock from operating handle catch.
3. Holding sun roof at both sides, release hinges from locating brackets at front of outer frame.
4. Remove sun roof.
5. Starting from centre rear, peel headlining finisher from inner frame.
6. Remove 18 screws securing inner frame to outer frame and detach inner frame.
7. Lift outer frame from roof.

NOTE: Assistance may be required to remove the sun roof assembly.

Refit 12. Starting from centre rear, fit headlining finisher

8. Clean roof area around outer frame seating. 13. Press finisher firmly over inner frame and
9. Position outer frame on roof.
10. Fit inner frame to headlining and secure to outer frame with 18 screws but do not fully tighten. 14. Fit sun roof hinges fully into locating brackets on
11. Check alignment of inner and outer frames with roof mounting and headlining, adjust as 15. Engage operating handle catch with spring lock necessary, and fully tighten fixing screws to 10 Nm, 7 lbf ft.

lip into locating channel of inner frame.

continue around complete frame, ensuring finisher lies flat on headlining.

outer frame, and lower the glass panel.

of outer frame and close sunroof.
