Refit rear speaker panel

Refit REAR SPEAKER PANEL

13. Supporting from both sides, position roll-over Service repair no - 76.13.11 bar, engage struts in rear corners and front of side panels. Align on floor. Remove
14. Secure front seat belt inertia reels and rear seat belts to roll-over bar mountings. Tighten bolts to 32 Nm, 24 lbf ft.
15. Raise roll-over bar assembly and secure to roof mounting brackets. Tighten bolts to 45 Nm, 33 lbf ft.
16. Secure roll-over bar to wheelarches. Tighten bolts to 45 Nm, 33 lbf ft.
17. Secure roll-over bar to body side mounting brackets, tightening bolts to 45 Nm, 33 lbf ft.
18. Secure centre section to main roll-over bar, but do not fully tighten fixing bolts at this stage.
19. Reconnect driver’s seat belt audible warning harness plug.
20. Secure seat belt stalks and roll-over bar floor mounting brackets to chassis. Tighten bolts to 32 Nm, 24 lbf ft.
21. Fully tighten roll-over bar centre section retaining bolts to 45 Nm, 33 lbf ft.
22. Fit centre console. See Centre console
23. Fit side trim panel. See Side trim panel

Refit

10. Fit rear speaker.
11. Fit rear end trim panel.
1. Raise seat cushion and fit stowage strap.
2. Remove rear end trim panel. See rear end trim panel - hard top
3. Remove rear speaker. See ELECTRICAL, Repair, rear speaker

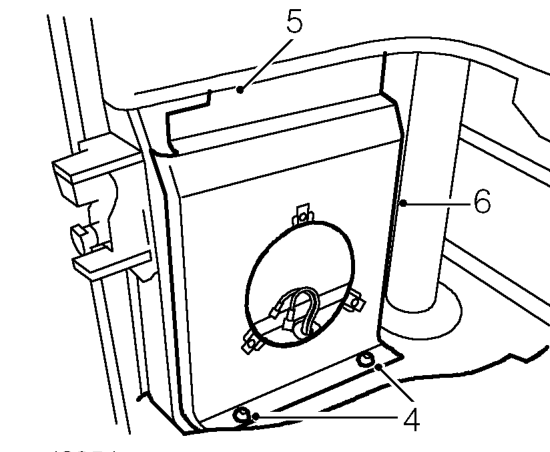

4. Peel back carpet and remove 2 screws securing speaker panel to wheelarch.
5. Prise top edge of panel down to release from body channel.
6. Remove speaker panel.
7. Position speaker panel on wheel arch.
8. Press top edge of panel down firmly and locate under body channel.
9. Secure speaker panel to wheel arch with screws and reposition carpet. See ELECTRICAL, Repair, rear radio speaker See rear end trim panel - hard top
