INTERIOR MIRROR SUN VISORS

Service repair no - 76.10.51 Service repair no - 76.10.47

Remove Remove

Remove remove – Service repair no - 76.10.51 Service repair no - 76.10.47

Refit

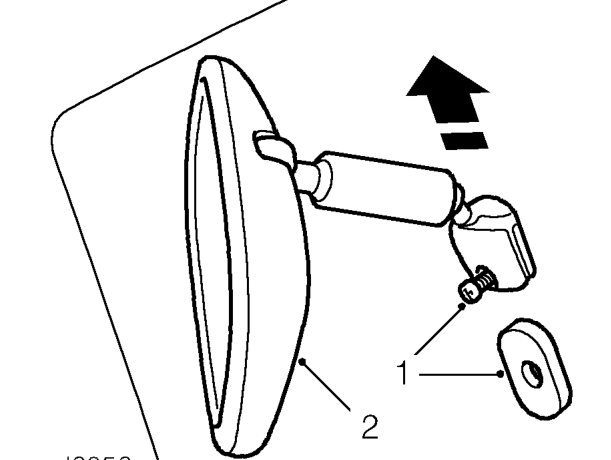

  1. Remove retaining screw securing mirror adjustment arm to mounting slug.
  2. Slide adjustment arm up from mounting slug and remove mirror.

Refit

  1. Slide mirror adjustment arm over mounting slug.
  2. Secure mirror with retaining screw.
Remove remove – Secure mirror with retaining screw.

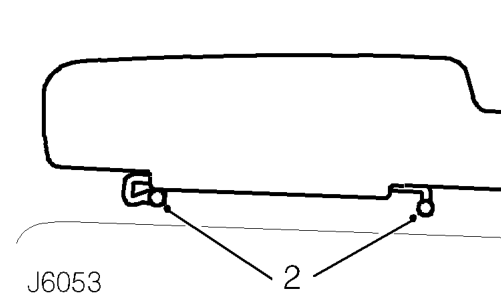

  1. Raise sun visor.
  2. Remove 2 screws and collect sun visor.
  3. Position sun visor and secure with 2 screws.
