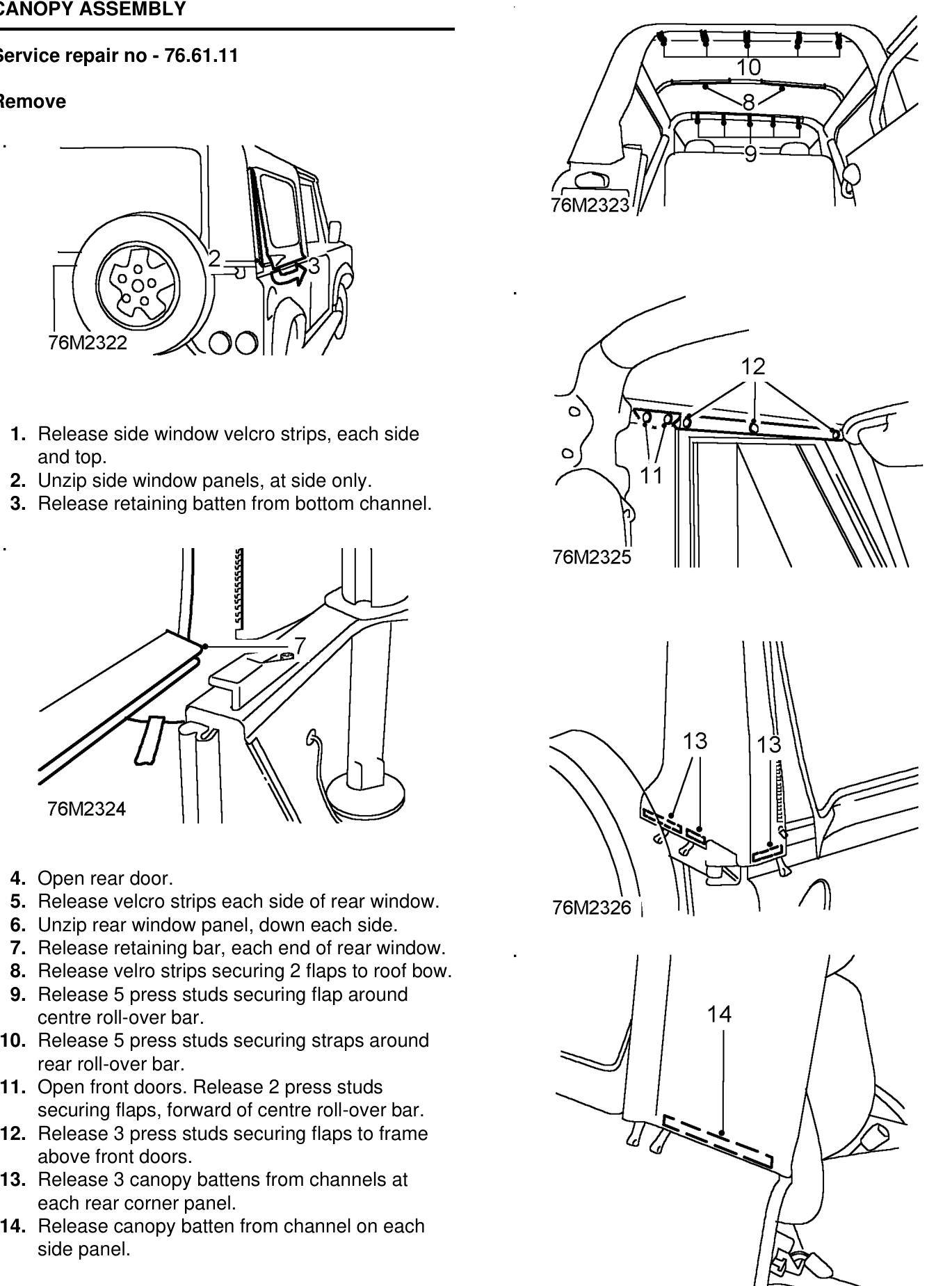

Canopy assembly

CANOPY ASSEMBLY

Service repair no - 76.61.11

Remove

1. Release side window velcro strips, each side and top.
2. Unzip side window panels, at side only.
3. Release retaining batten from bottom channel.
4. Open rear door.
5. Release velcro strips each side of rear window.
6. Unzip rear window panel, down each side.
7. Release retaining bar, each end of rear window.
8. Release velro strips securing 2 flaps to roof bow.
9. Release 5 press studs securing flap around centre roll-over bar.
10. Release 5 press studs securing straps around rear roll-over bar.
11. Open front doors. Release 2 press studs securing flaps, forward of centre roll-over bar.
12. Release 3 press studs securing flaps to frame above front doors.
13. Release 3 canopy battens from channels at each rear corner panel.
14. Release canopy batten from channel on each side panel.
