Interior roll-over bar - hard top

INTERIOR ROLL-OVER BAR - HARD TOP

Service repair no - 76.11.40

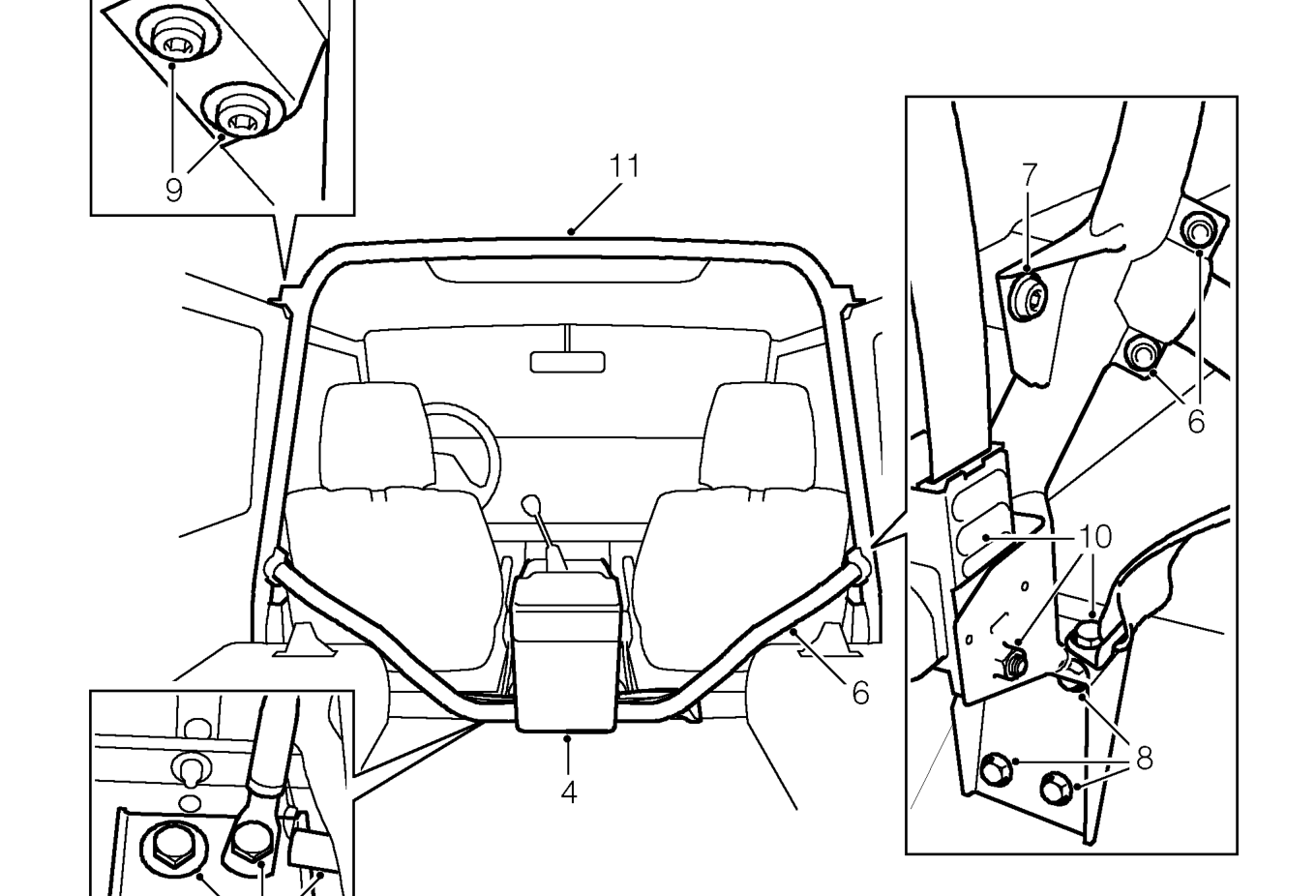

Remove

1. Remove rear seat squabs. See rear seat squab
2. Remove rear end trim panels. See rear end trim panel - hard top 10. Unscrew retaining bolts, from both sides, and
3. Remove side trim panels. See side trim panel - hard top
4. Remove centre console. See Centre console 11. Supporting from both sides, raise and tilt
5. Remove 4 bolts securing centre section of roll-over bar and seat belt stalks to floor. On 12. Remove roll-over bar from vehicle. driver’s side, disconnect harness plug connector of audible warning circuit at belt stalk.
6. Remove 2 torx bolts and nuts from both sides and detach centre section of roll-over bar assembly.
7. Remove torx bolt, from both sides, securing roll-over bar to body side mounting brackets.
8. Remove 3 bolts and washers, from both sides, securing lower roll-over bar brackets to front of wheelarch.
9. Remove 2 torx bolts and washers, from both sides, securing roll-over bar upper mountings to roof fixing brackets and carefully lower complete assembly to floor.

remove front seat belt inertia reels and rear seat belts from roll-over bar mounting.

roll-over bar rearwards to clear wheelarches.

NOTE: Assistance may be required to remove roll-over bar.
