Chassis and bodyRear seat squab

REAR SEAT SQUAB

Service repair no - 78.10.58/99

Remove

  1. Release seat cushion stowage strap and lower seat cushion.
  2. Loosen 2 bolts securing seat squab brackets to body side.
  3. Remove 2 bolts, plain washers, spring washers and nuts securing seat squab to wheel arch.
  4. Lift and release brackets from retaining bolts and remove seat squab.

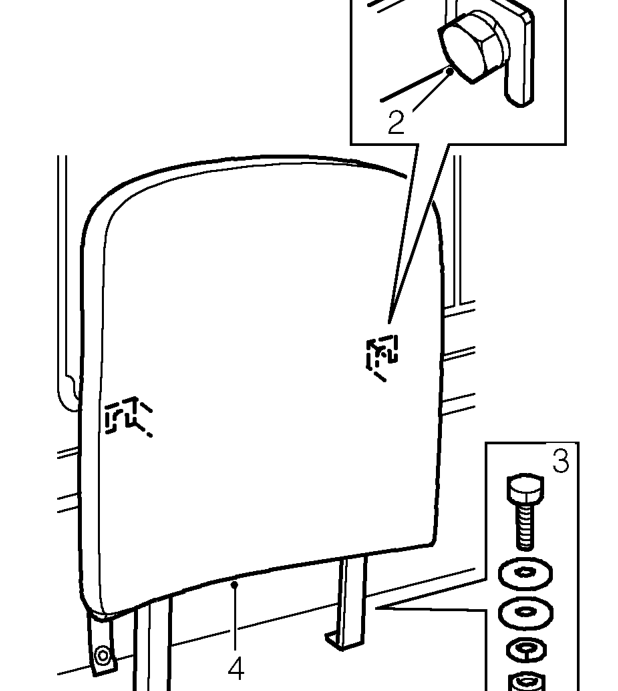

Rear seat squab – Lift and release brackets from retaining bolts and remove seat squab.

Refit

  1. Lower seat squab brackets over retaining bolts, tighten bolts to 10 Nm, 7 lbf ft

.

  1. Secure seat squab to wheel arch, tighten bolts to 10 Nm, 7 lbf ft.
  2. Raise seat cushion and fit stowage strap.
