Tail door lock - soft top refit

TAIL DOOR LOCK - SOFT TOP Refit

Service repair no - 76.37.16

Remove 10. Fit lock to door with a NEW gasket.

11. Secure with retainer plates, screws, washers
1. Open tail door.
12. Close door and check for correct latching with
13. Adjust striker as necessary.

PRIVATE LOCK - TAIL DOOR

Service repair no - 76.37.42

Remove

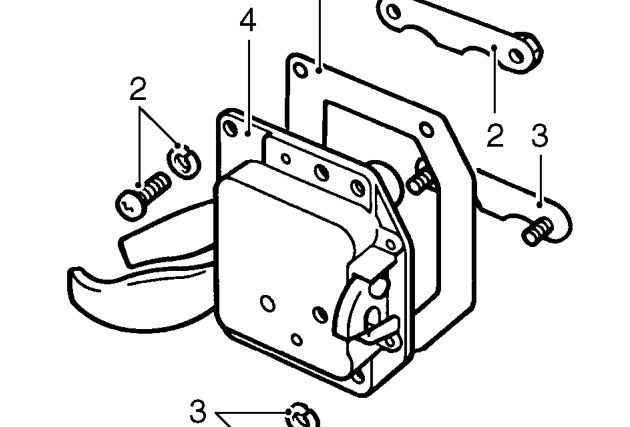

2. Remove 2 screws, washers and nut retainer securing top of lock to door. Refit
3. Remove 2 nuts, washers and screw retainer securing bottom of lock to door.
4. Withdraw lock assembly.
5. Remove door lock gasket.
6. Clean sealant from retainer plates.

7. Insert key into barrel, depress lock barrel plunger and withdraw barrel from lock.
8. Fit new barrel into lock.
9. Apply sealant to lock retainer plates.

and nuts.

striker. See Adjustment, tail door striker - adjust

1. Remove tail door lock. See Door lock - tail door
2. Insert key in barrel.

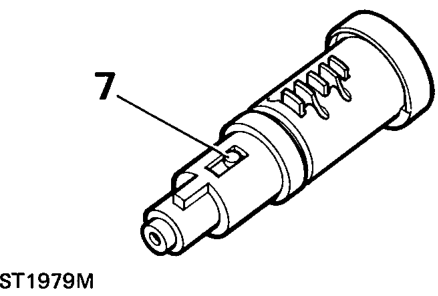

3. Depress lock barrel plunger (seeST1979M).
4. Withdraw barrel from lock.
5. Reverse removal procedure.
6. Refit tail door lock. See Door lock - tail door
