Front seat belts

FRONT SEAT BELTS

Service repair no - 76.73.13

Remove

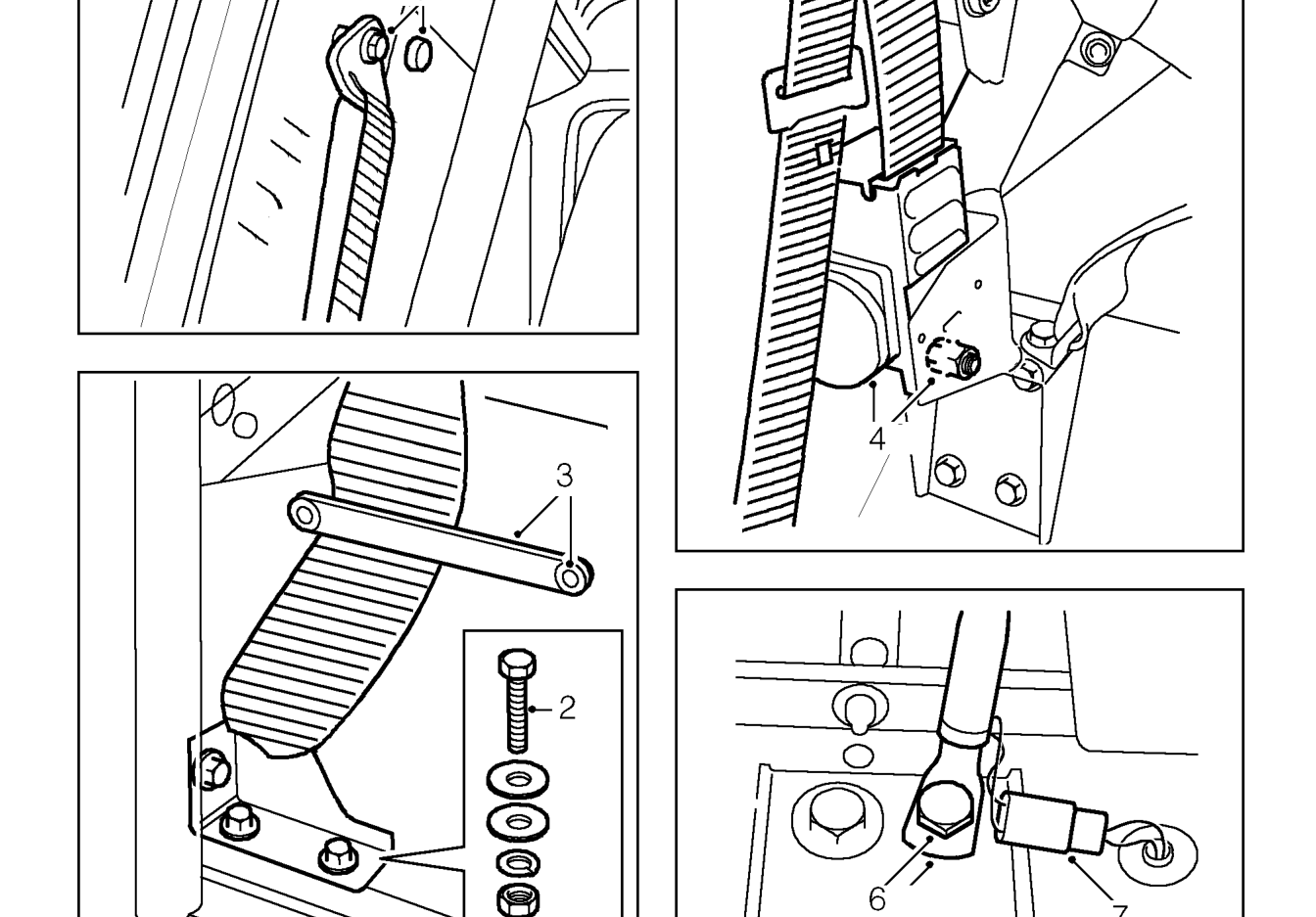

1. Remove cap and unscrew seat belt guide bracket fixing bolt from ’B/C’ post.
2. Remove 3 bolts and plain washers securing seat belt mounting bracket to body on outside of seat base.
3. Prise seat belt retaining clip from side of seat mounting and remove trim studs.
4. Unscrew bolt and remove seat belt inertia reel from roll-over bar mounting bracket.
5. Remove seat belt and inertia reel assembly.
6. Unscrew bolt and washer and remove seat belt buckle stalk from roll-over mounting bracket.
7. On the driver’s side, disconnect harness plug connector of audible warning circuit at buckle stalk.

Refit 11. Secure seat belt backet to floor on outside of

8. Reconnect harness plug of audible warning 12. Fit seat belt retaining clip to side of seat base circuit.
9. Position stalk on roll-over bar mounting bracket 13. Extend belt from inertia reel, secure slide bracket and tighten fixing bolt to 32 Nm, 24 lbf ft.
10. Secure seat belt inertia reel to roll-over bar 14. Refit fixing bolt cap. mounting and tighten bolt to 32 Nm, 24 lbf ft.

seat base and tighten bolts to 23 Nm, 17 lbf ft).

and secure with trim studs.

to ’B/C’ post and tighten bolt to 32 Nm, 24 lbf ft.
