10 · Engine

Strainer - oil pick-up (page 2 of 4)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Engine - V8Strainer - oil pick-up · page 2 of 4
  1. Clean coolant pump and mating face.
  2. Use a new gasket and fit coolant pump. Gasket - sump Tighten bolts securing coolant pump to 25 Nm (19 lbf.ft).

$% 12.60.38

  1. Ensure CMP sensor is clean and fit sensor to cover.

Remove

  1. Fit clamp to CMP sensor and tighten bolt to 8 Nm (6 lbf.ft).
  2. Fit timing gear cover gasket. ENGINE - V8, REPAIRS, Gasket - timing gear cover.
  3. Release fixings and remove battery cover.
  4. Disconnect battery earth lead.

3. Remove dipstick.

  1. Raise the vehicle on a ramp.
  2. Drain engine oil. MAINTENANCE, PROCEDURES, Engine oil - V8 engine.
Drain engine oil.  MAINTENANCE, PROCEDURES, Engine oil - V8 engine.

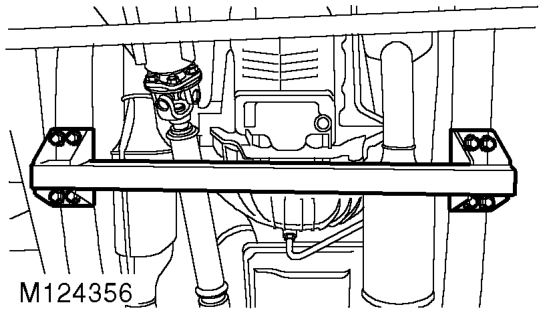

  1. Remove 8 bolts securing cross member and remove cross member.
  2. Raise front of vehicle under body to increase clearance between engine and front axle.
Raise front of vehicle under body to increase clearance between engine and front axle.

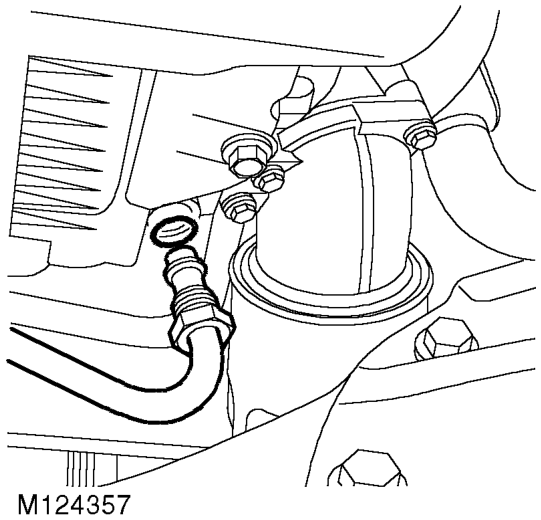

  1. Disconnect and release gearbox oil cooler pipe and discard 'O' ring.
