Handle - exterior - tail door

DOORS

REPAIRS 76-1-33

Handle - exterior - tail door

$% 76.58.05

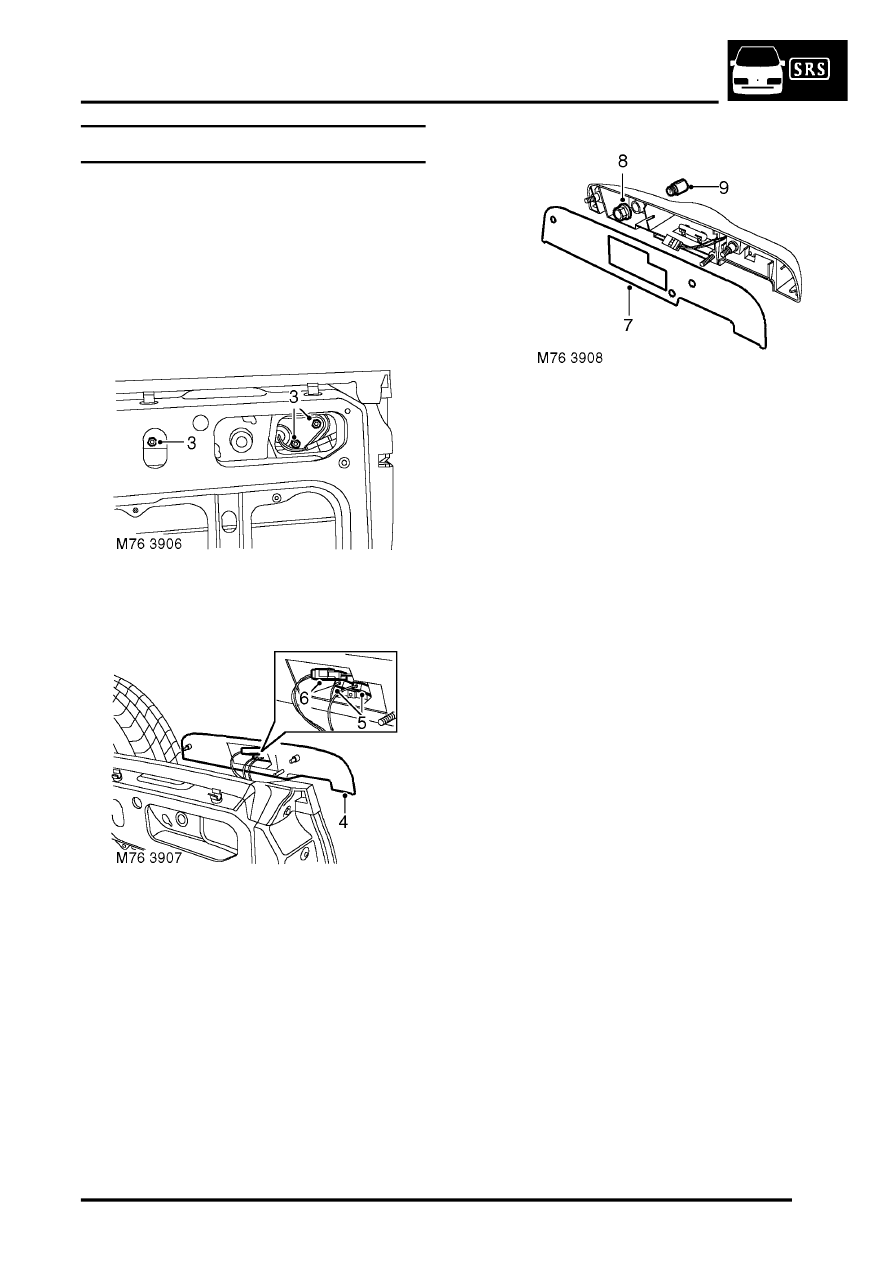

Remove

1. Remove tail door plastic sheet.

 +

 DOORS, REPAIRS, Plastic sheet -

tail door.

2. Raise glass by clicking latch.

3. Remove 3 nuts securing tail door handle to tail

door.

4. Release handle from tail door.
5. Disconnect 2 Lucars from number plate lamp.
6. Disconnect multiplug and remove handle from

door.

7. Collect gasket.
8. Remove nut from lock barrel.
9. Remove lock barrel from handle.

Refit

1. Fit lock barrel to handle.
2. Fit gasket to handle.
3. Position handle and connect Lucars and

multiplug.

4. Fit handle to door and tighten nuts to 5 Nm (3.5

lbf.ft).

5. Fit tail door plastic sheet.

 +

 DOORS, REPAIRS, Plastic sheet -

tail door.

6. Reset latch to lower glass.
7. Close door.
